ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

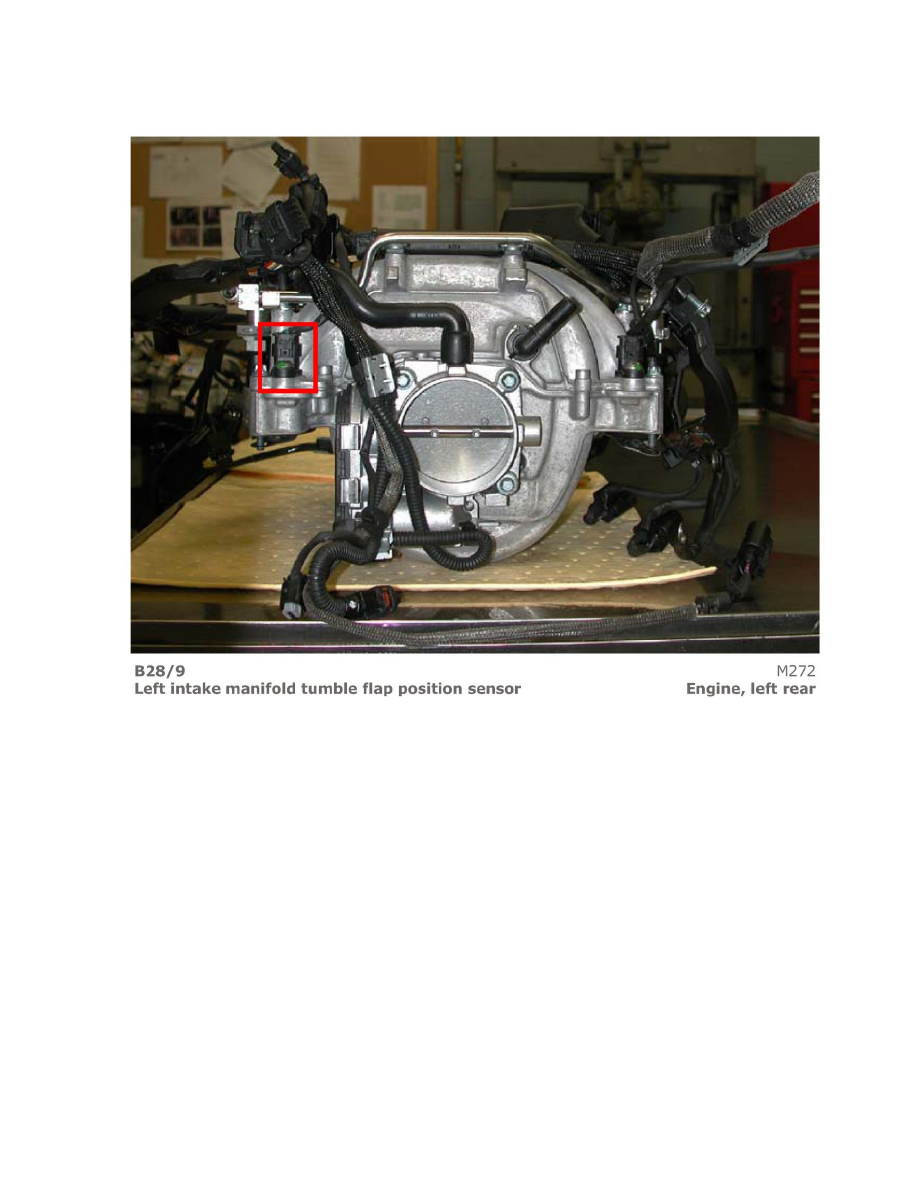

Variable Induction Position Sensor: Locations
Left Intake Manifold Tumble Flap Position Sensor - B28/9
