ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

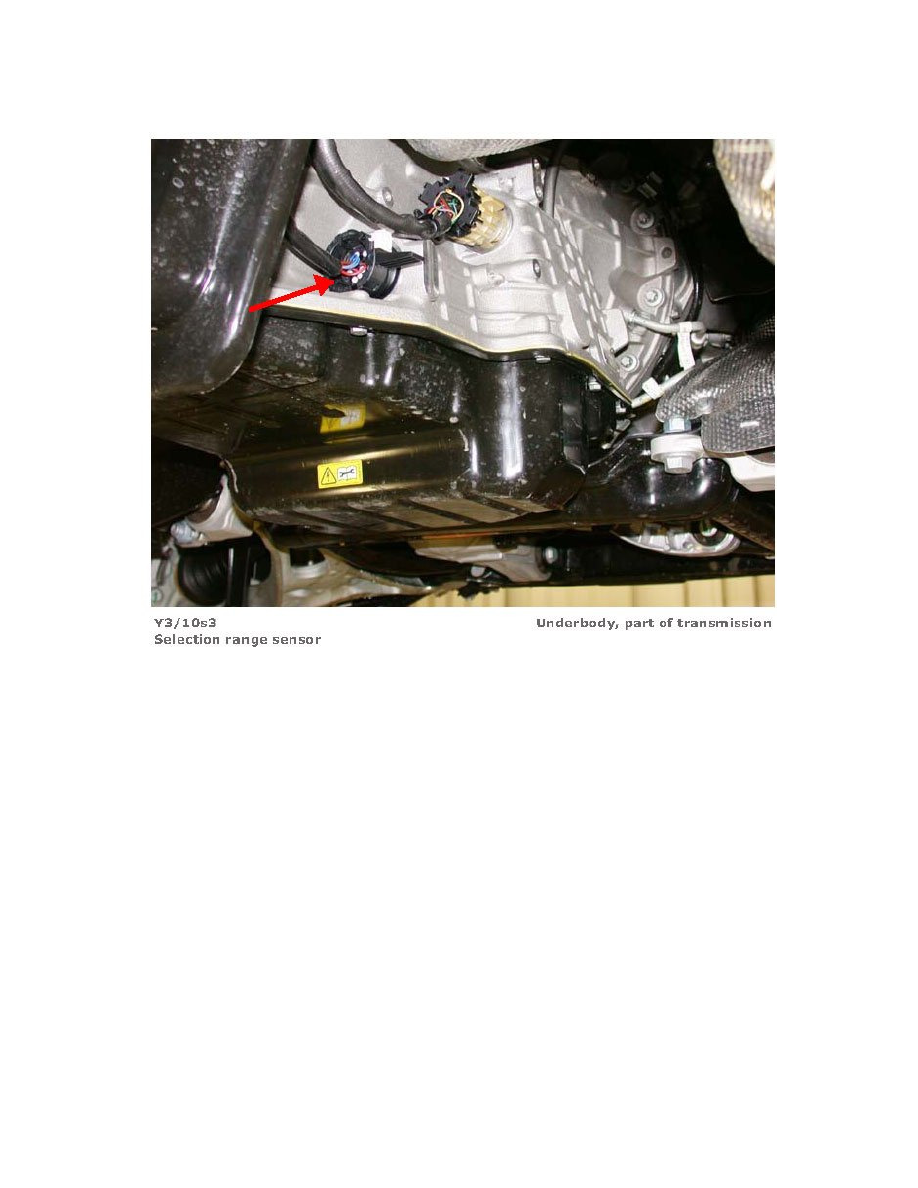

Transmission Position Switch/Sensor: Locations
Selection Range Sensor

Selection Range Sensor

Selection Range Sensor (View 1)
