ML 350 4MATIC (164.186) V6-3.5L (272.967) (2006)

Page 1
background image

Shift Solenoid: Locations
Brake B1 Control Solenoid Valve

Brake B1 Control Solenoid Valve

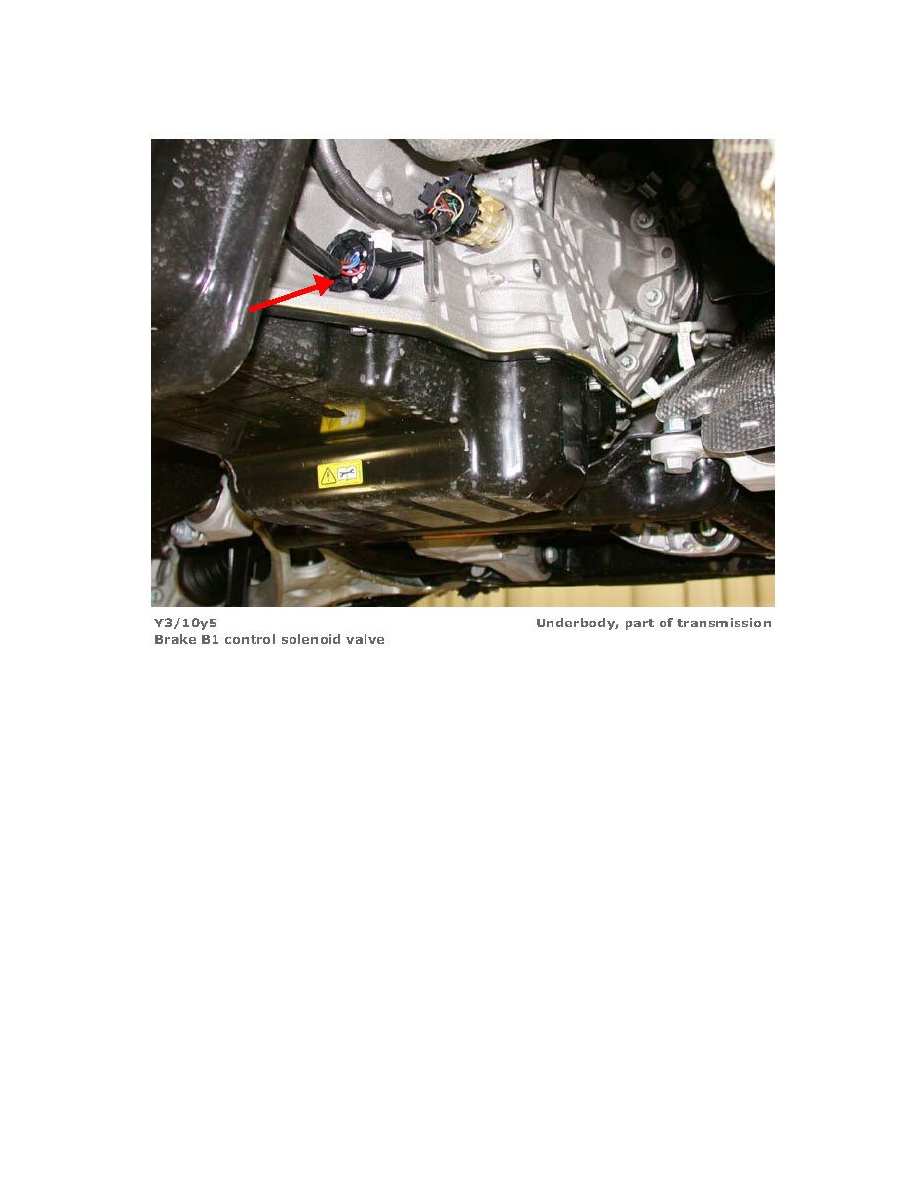

Brake B1 Control Solenoid Valve (View 1)
