ML 450 (164.195) V6-3.5L (272.973) Hybrid (2010)

Page 1
background image

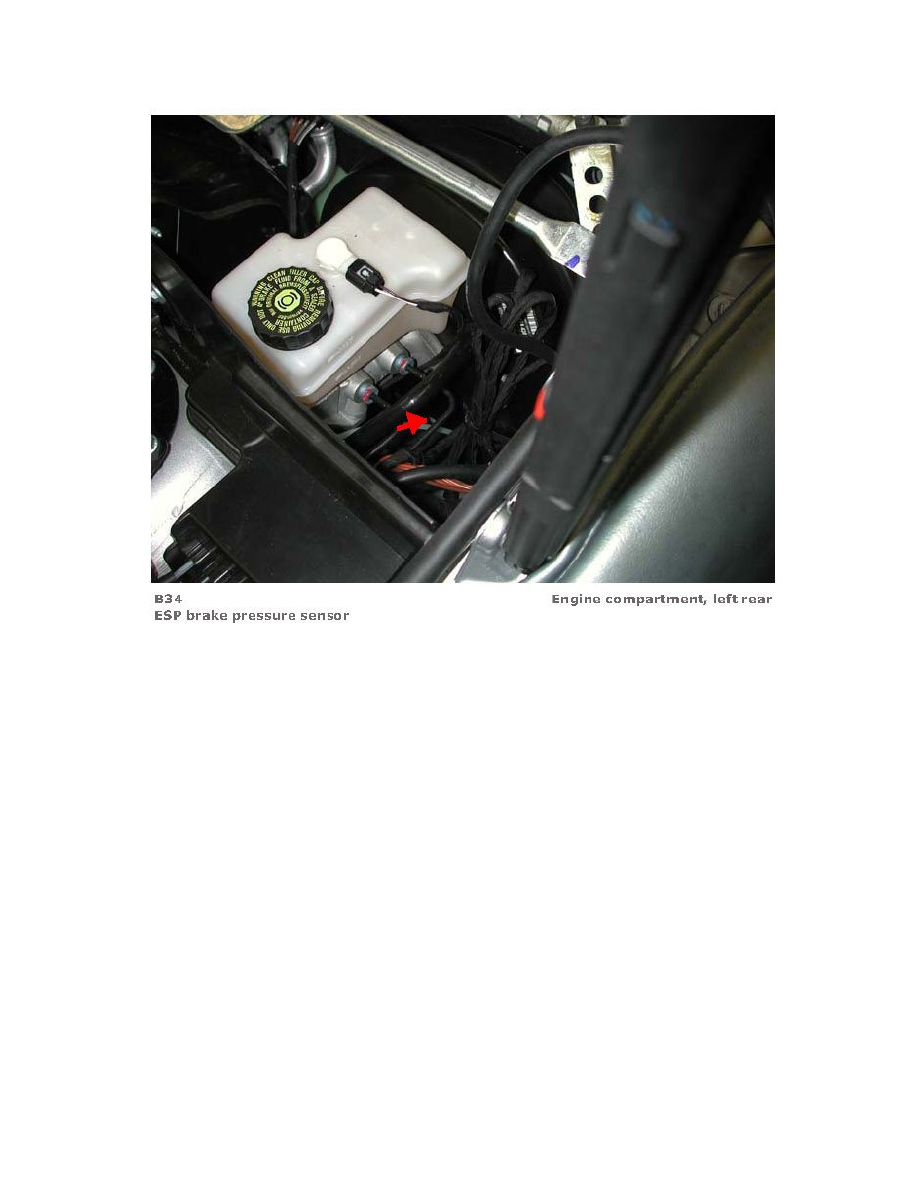

Brake Pressure Switch: Locations

ESP Brake Pressure Sensor

ESP Brake Pressure Sensor (View 1)
