ML 450 (164.195) V6-3.5L (272.973) Hybrid (2010)

Page 5
background image

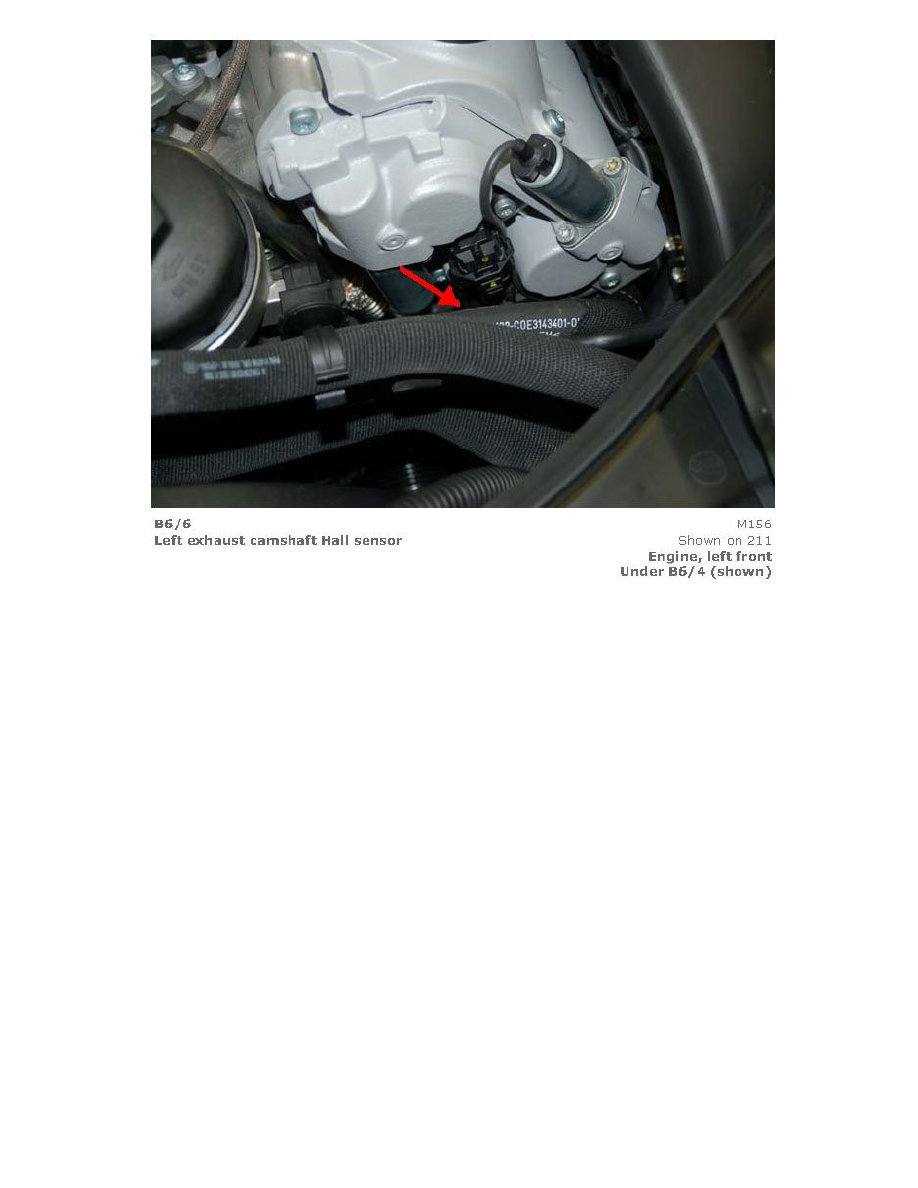

Left Exhaust Camshaft Hall Sensor (View 5)
