Cellular Phone Microphone: Description and Operation
GF82.70-P-4119RTJ Microphone Array Control Unit, Component Description

GF82.70-P-4119RTJ Microphone Array Control Unit, Component Description

- with CODE (498) Japan version

Component Identification

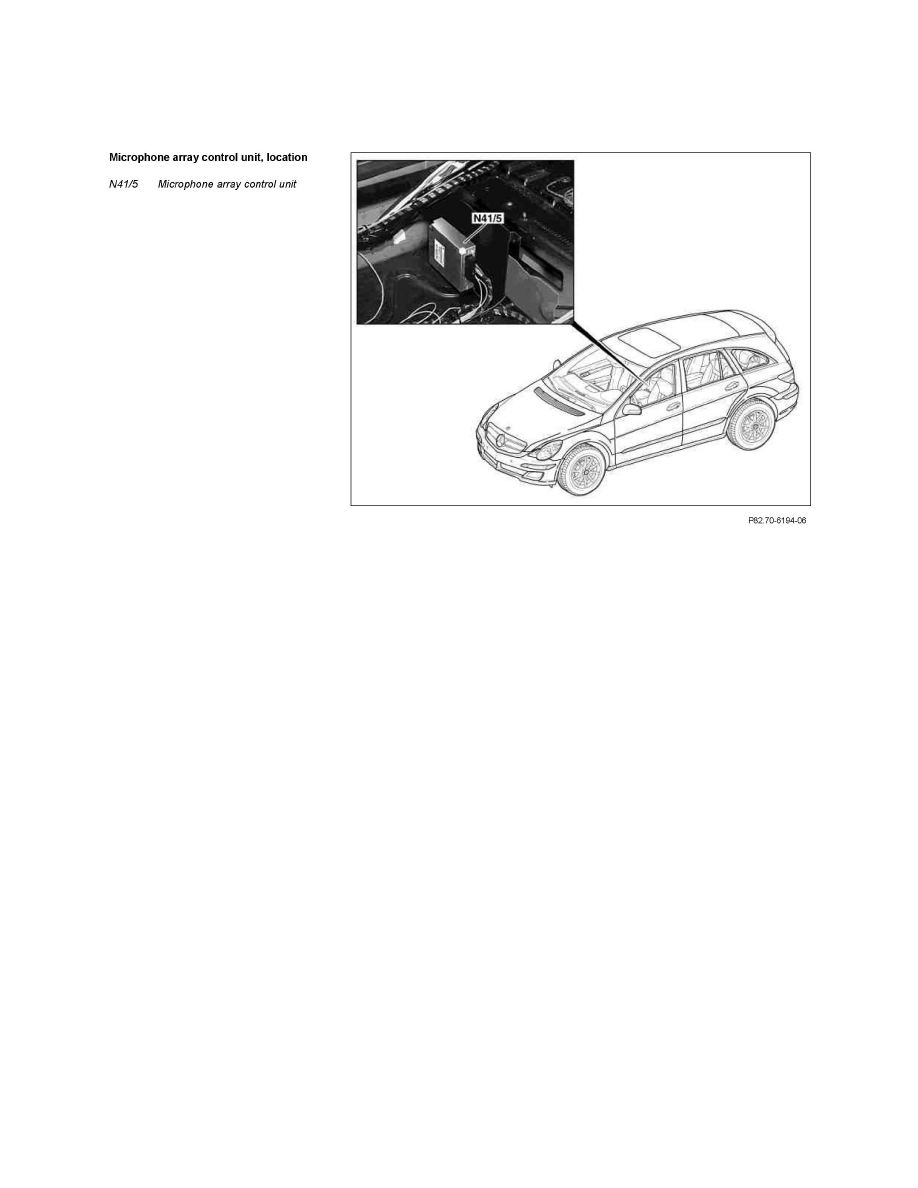

The microphone array control unit is installed on a bracket in the footwell of the second seat row on the right.

The microphone array control unit converts the analog signals of the hands-free system microphone group (A67b1) into digital signals and sends them to
the MOST.
