R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Harmonic Balancer - Crankshaft Pulley: Service and Repair
AR03.30-P-1600GZA Remove/Install Belt Pulley/Vibration Damper

AR03.30-P-1600GZA Remove/install belt pulley/vibration damper

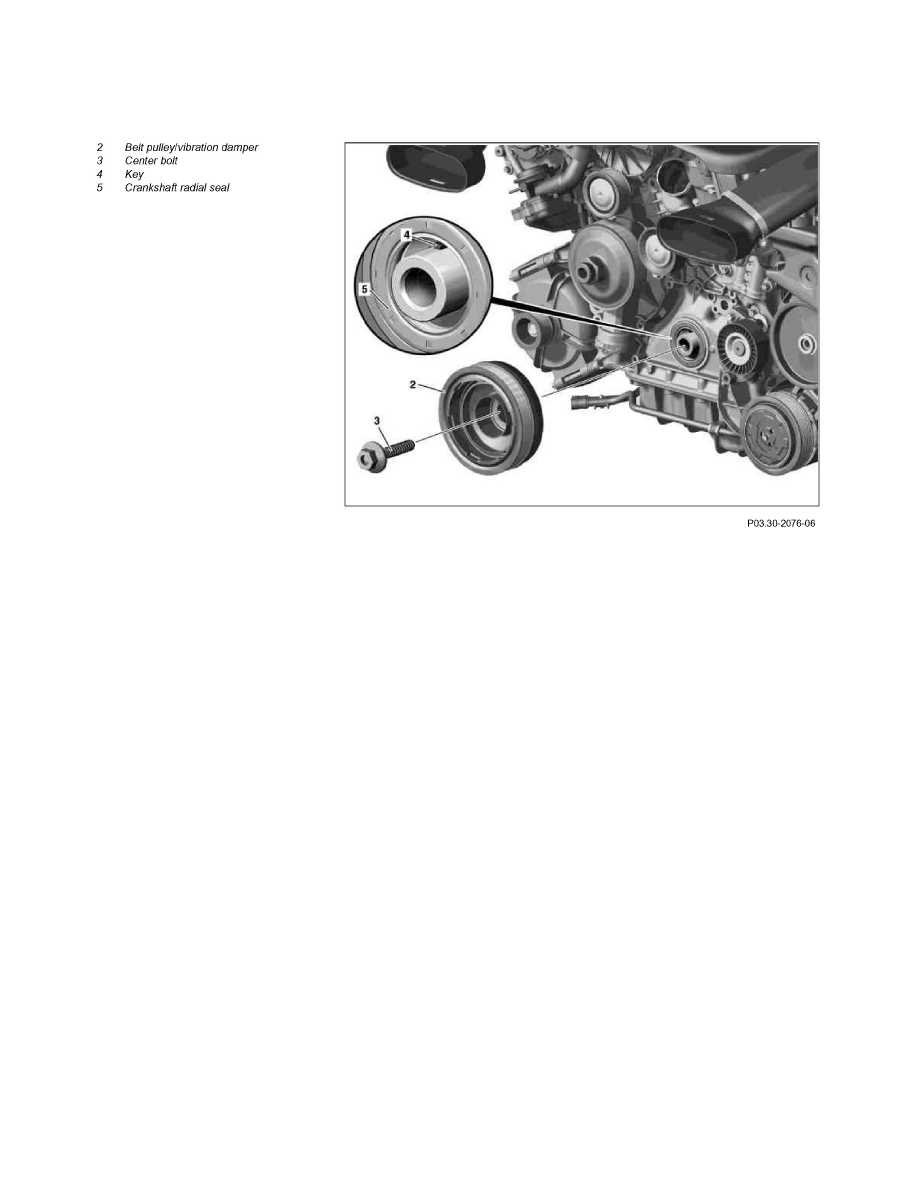

Component Identification
