R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Water In Fuel Sensor: Locations
Fuel Filter Water Level Sensor

Fuel Filter Water Level Sensor

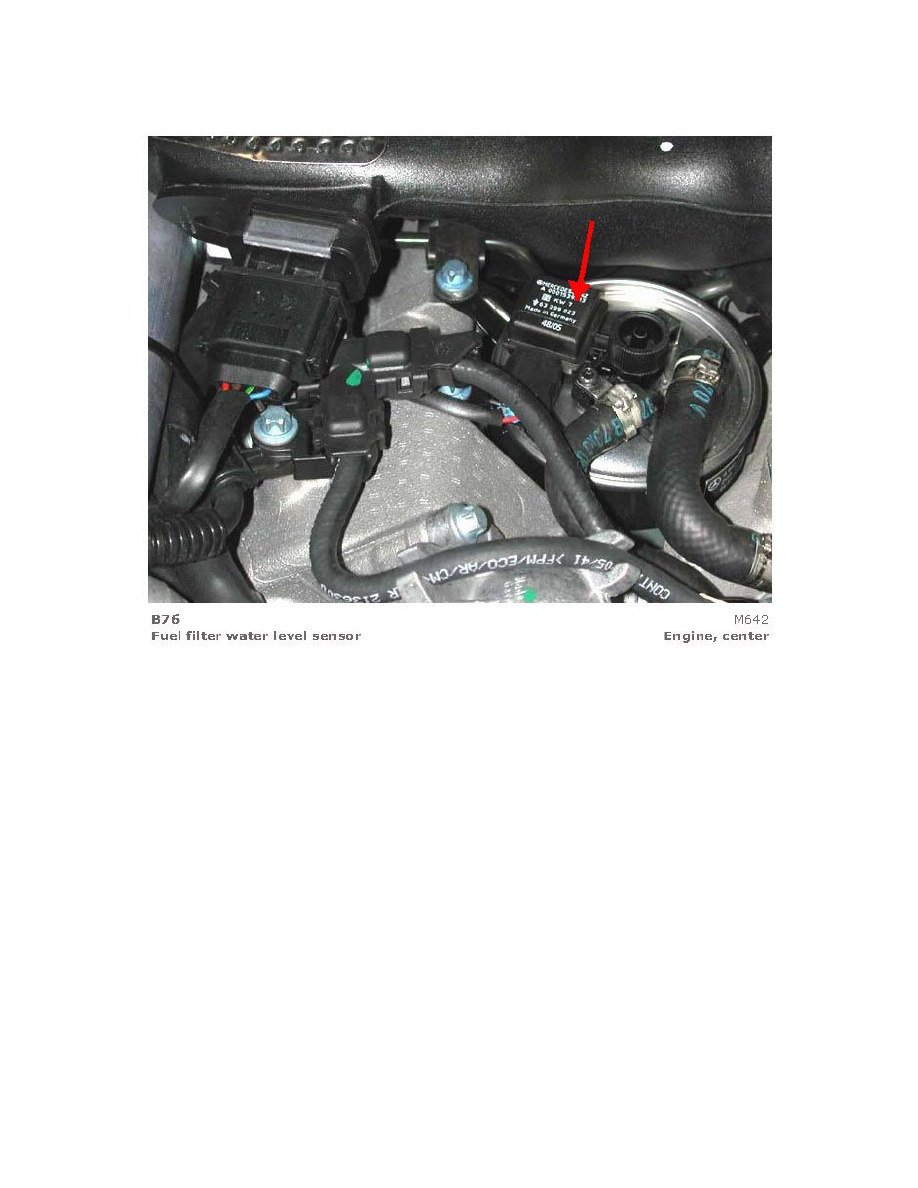

Fuel Filter Water Level Sensor (View 1)
