R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Door Switch: Locations

Door Contact ON and OFF Switch

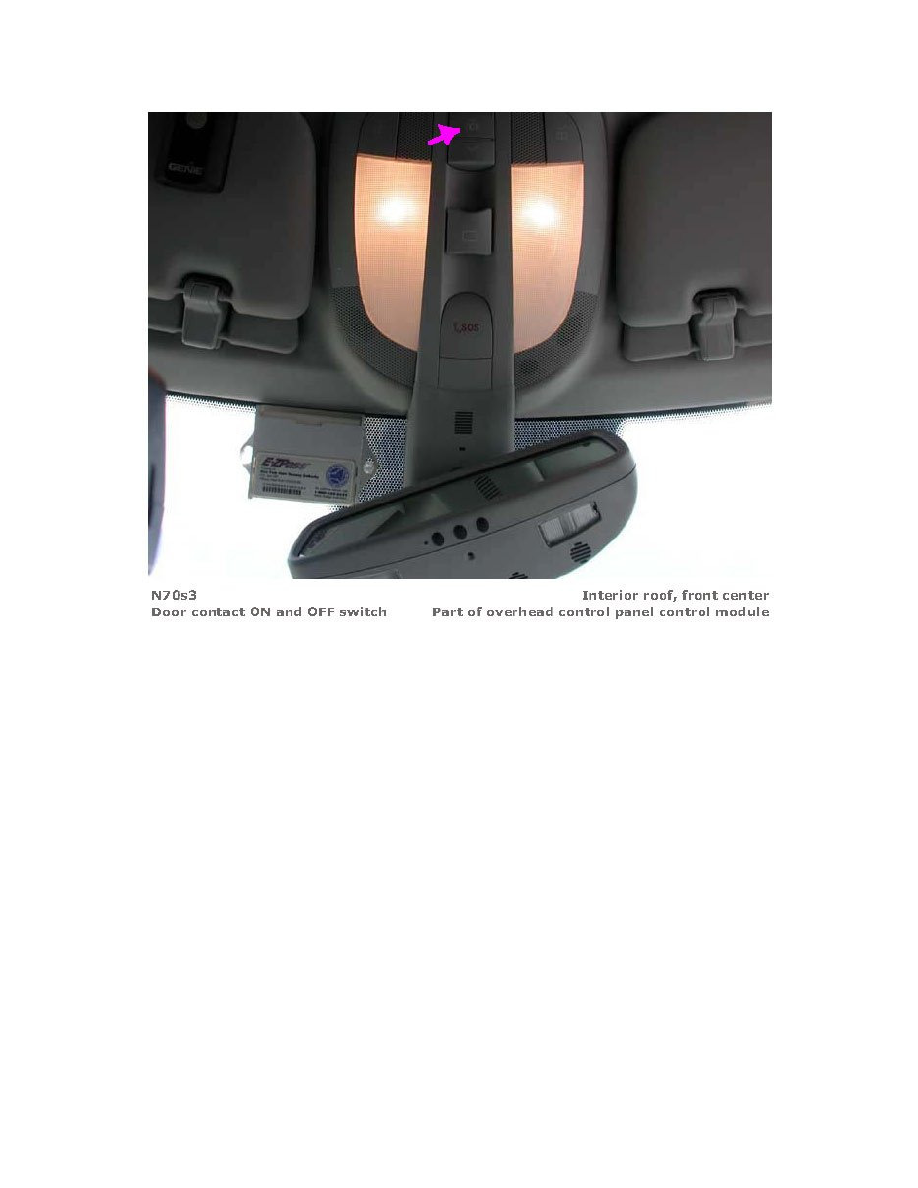

Door Contact ON And OFF Switch (View 1)
