R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

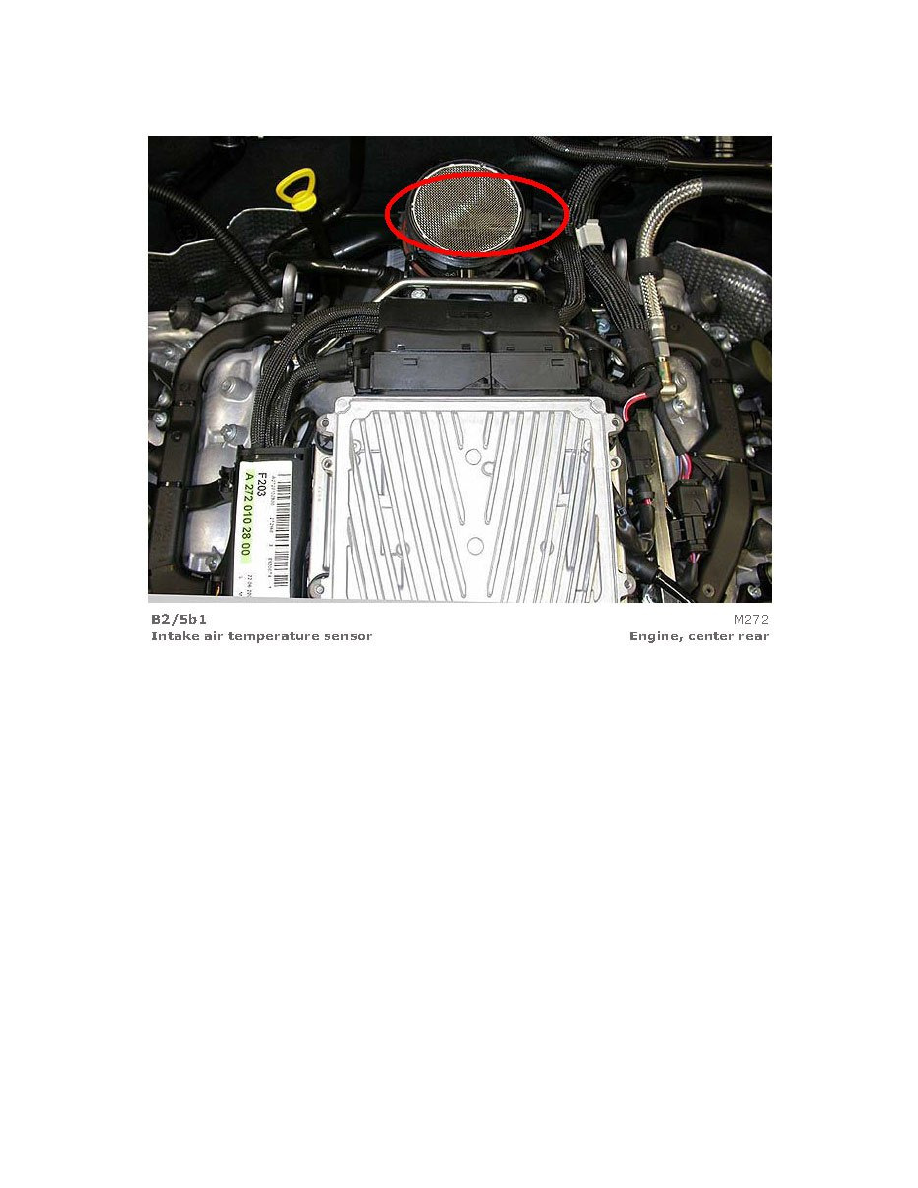

Intake Air Temperature Sensor: Locations
Intake Air Temperature Sensor

Intake Air Temperature Sensor

Intake Air Temperature Sensor (View 1)
