Air Diverter Valve: Service and Repair
AR14.30-P-7200RTA Remove/Install Air Shutoff Valve

AR14.30-P-7200RTA Remove/Install Air Shutoff Valve

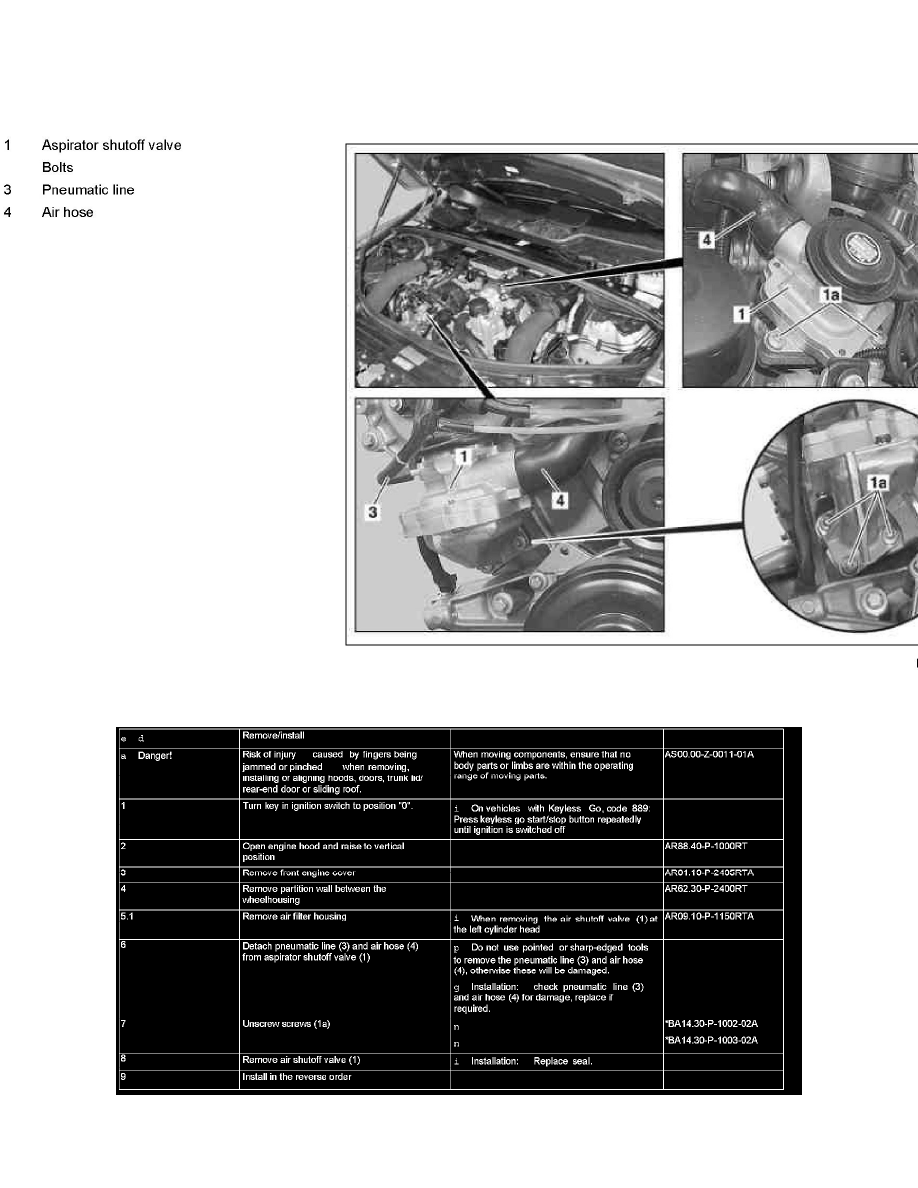

Component Identification

Steps 1 - 9
