R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Variable Induction Position Sensor: Locations
Intake Manifold Tumble Flap Position Sensor, Left

Intake Manifold Tumble Flap Position Sensor, Left

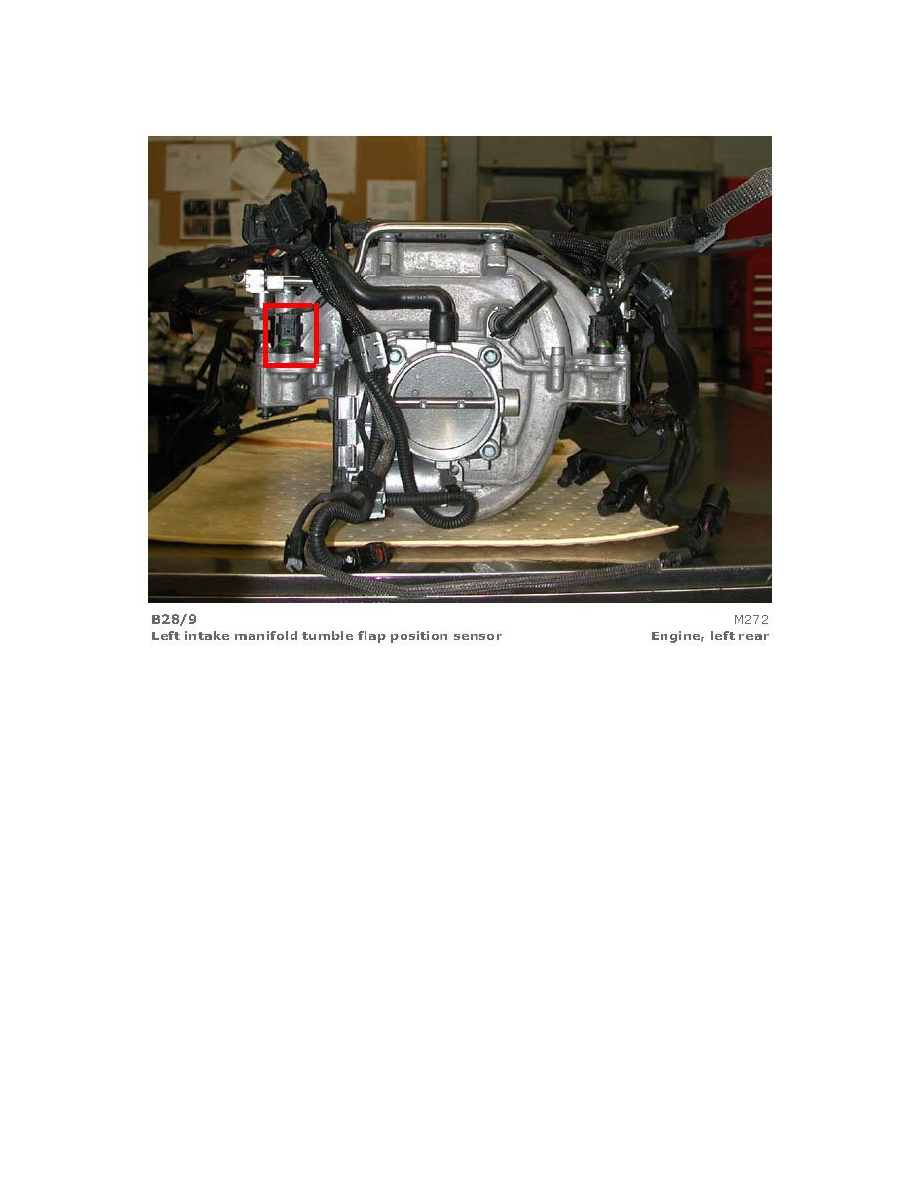

Left Intake Manifold Tumble Flap Position Sensor (View 1)
