Exhaust Temperature Sensor: Component Locations

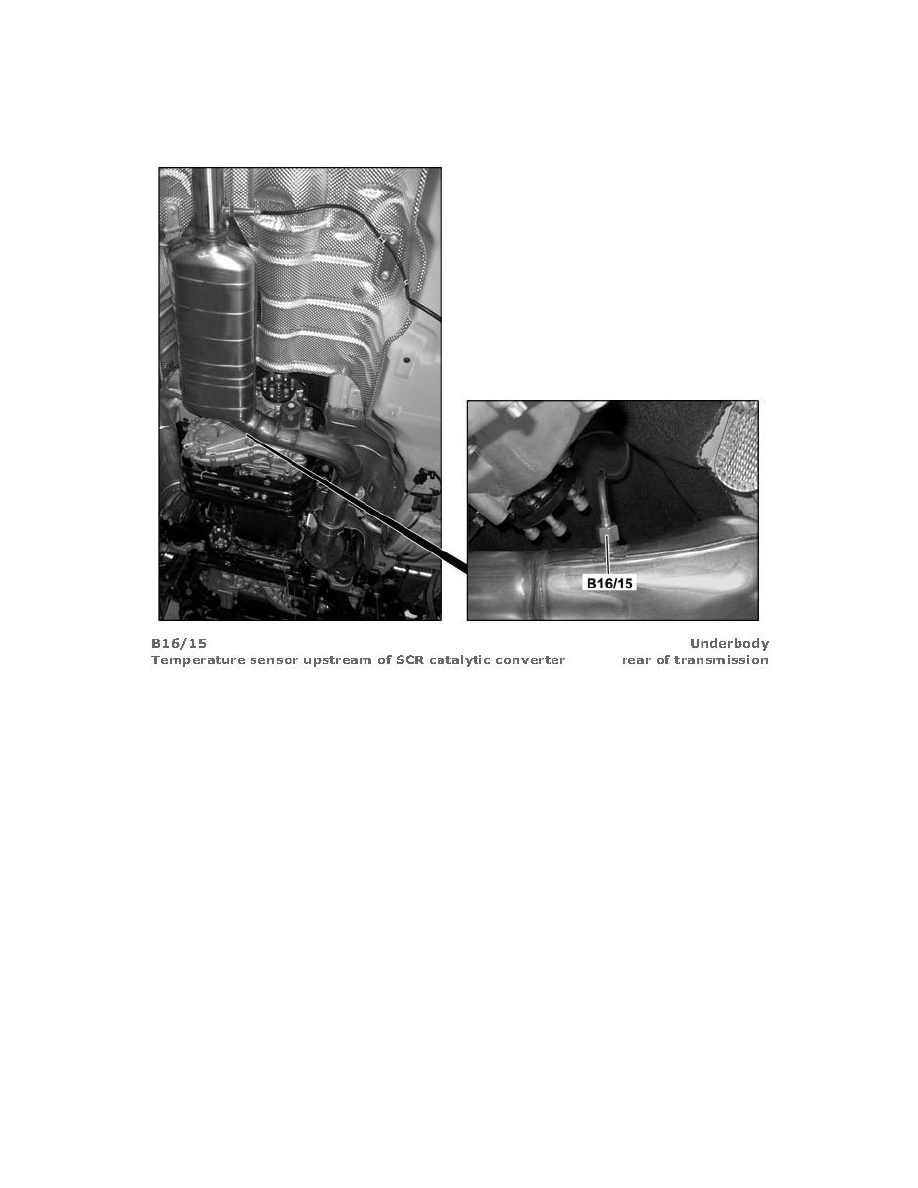

Temperature Sensor Upstream of SCR Catalytic Converter

Temperature Sensor Upstream of SCR Catalytic Converter

Temperature Sensor Upstream of SCR Catalytic Converter

Temperature Sensor Upstream of Turbocharger

Temperature Sensor Upstream of Turbocharger
