R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Air Filter Restriction Sensor / Switch: Locations

Pressure Sensor Downstream of Air Cleaner

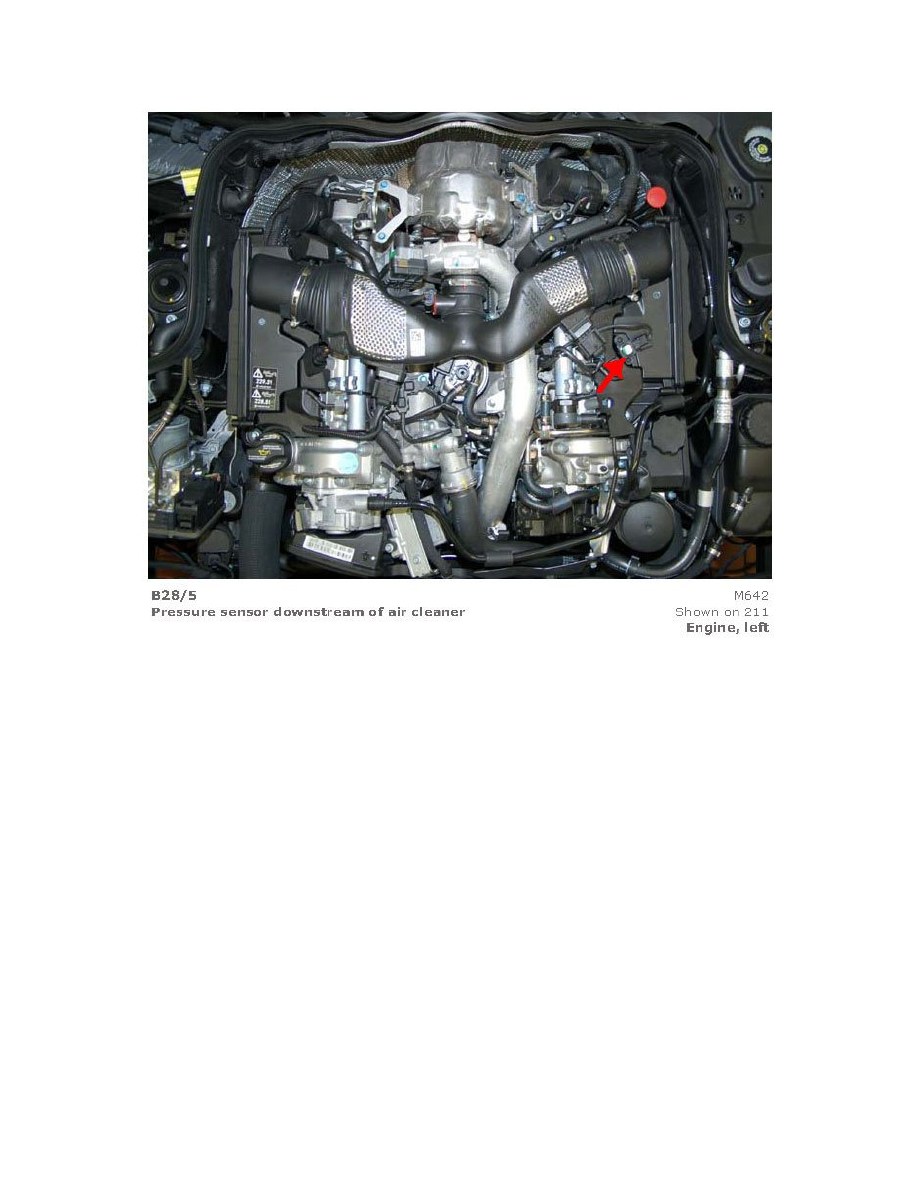

Pressure Sensor Downstream Of Air Cleaner (View 1)
