R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Crankshaft Position Sensor: Locations
Crankshaft Hall Sensor

Crankshaft Hall Sensor

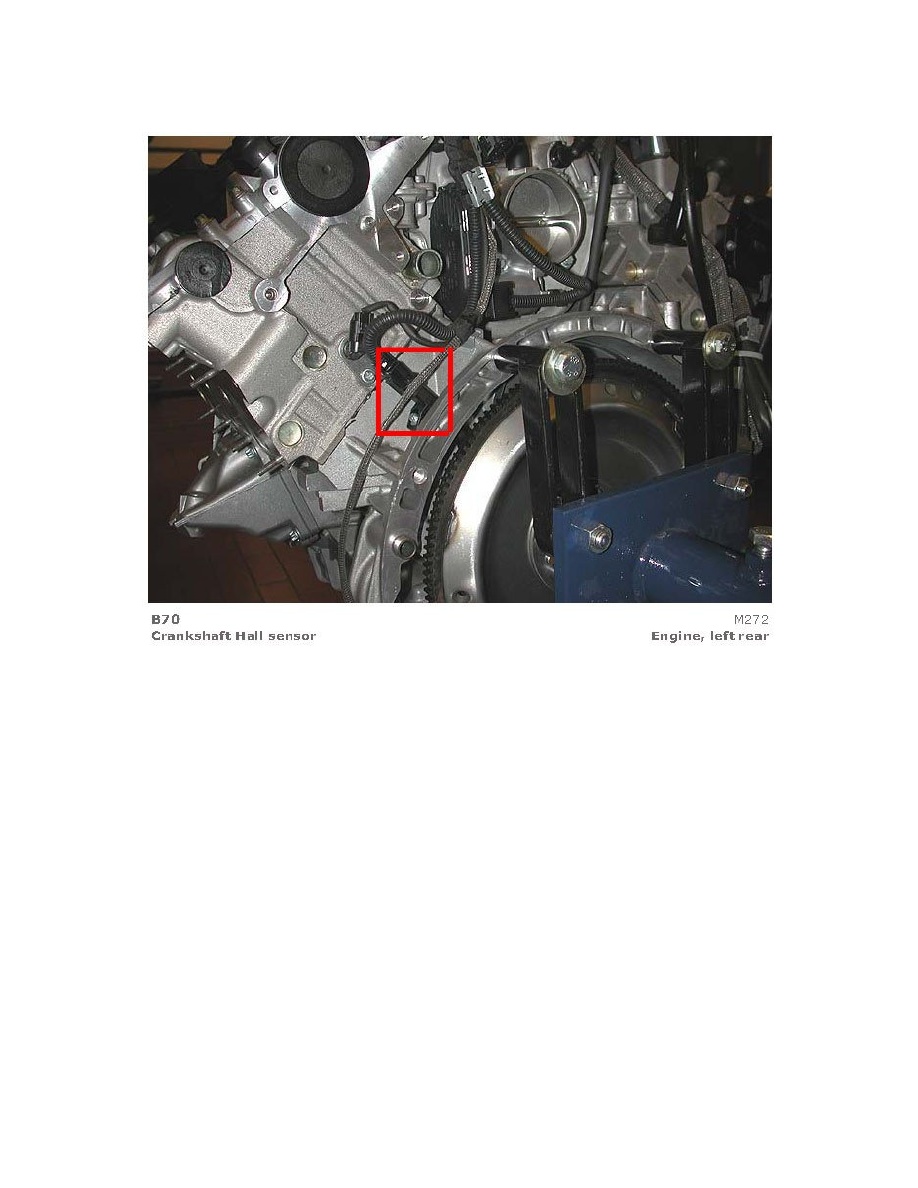

Crankshaft Hall Sensor (View 1)
