R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Seat Occupant Sensor: Locations
Sensor, WSS (Weight Sensing System), Front Left

Sensor, WSS (Weight Sensing System), Front Left

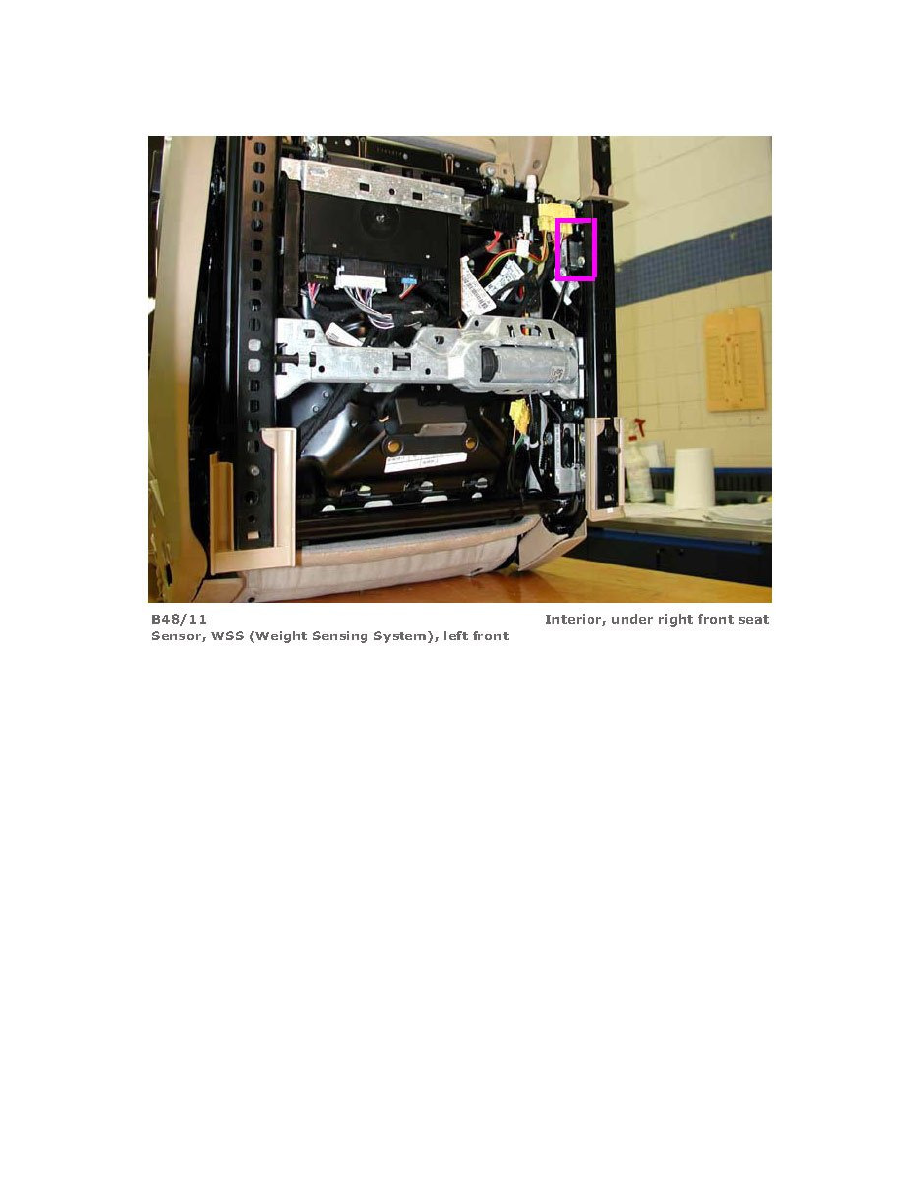

Sensor, WSS (Weight Sensing System), Left Front (View 1)
