R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

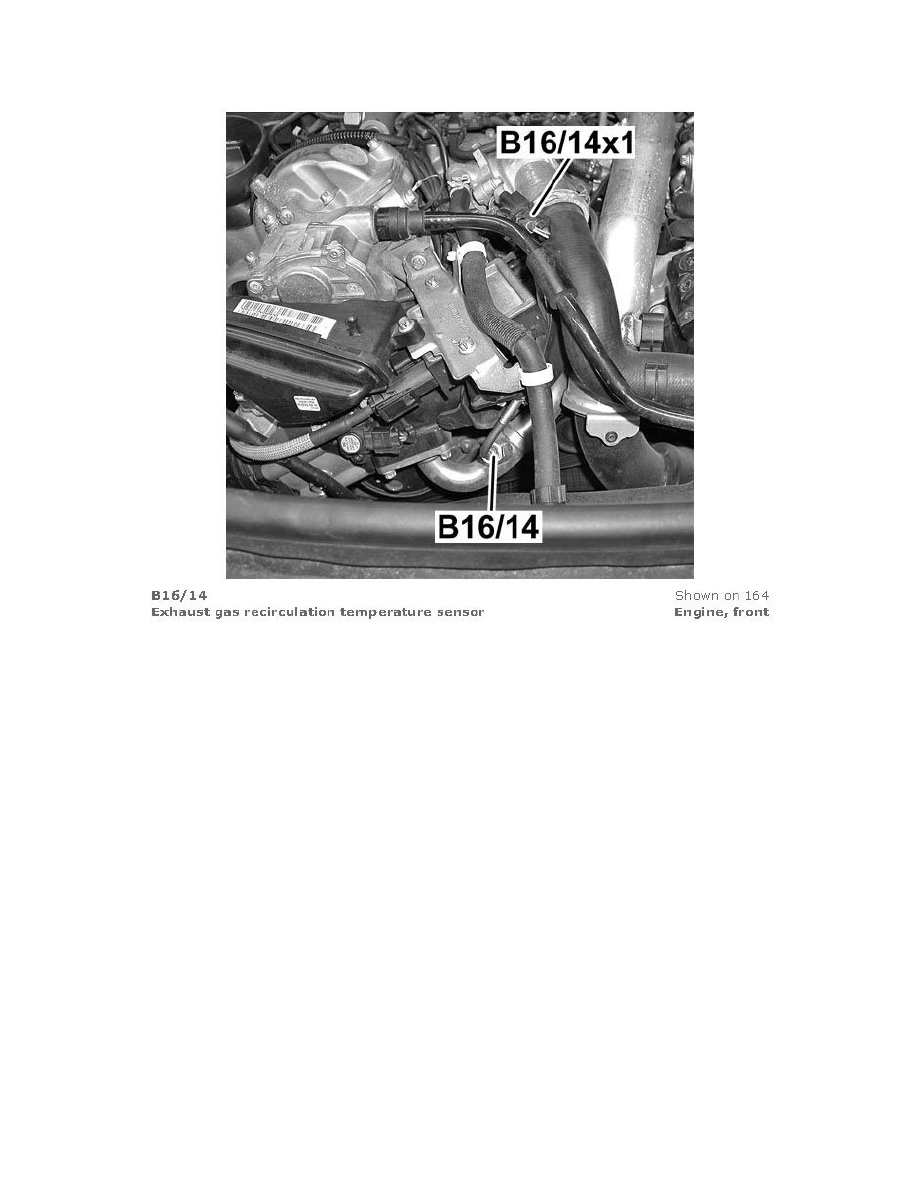

EGR Temperature Sensor: Component Locations

Exhaust Gas Recirculation Temperature Sensor

Exhaust Gas Recirculation Temperature Sensor (View 1)
