R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Transmission Speed Sensor: Locations
Turbine Speed Sensor (VGS)

Turbine Speed Sensor (VGS)

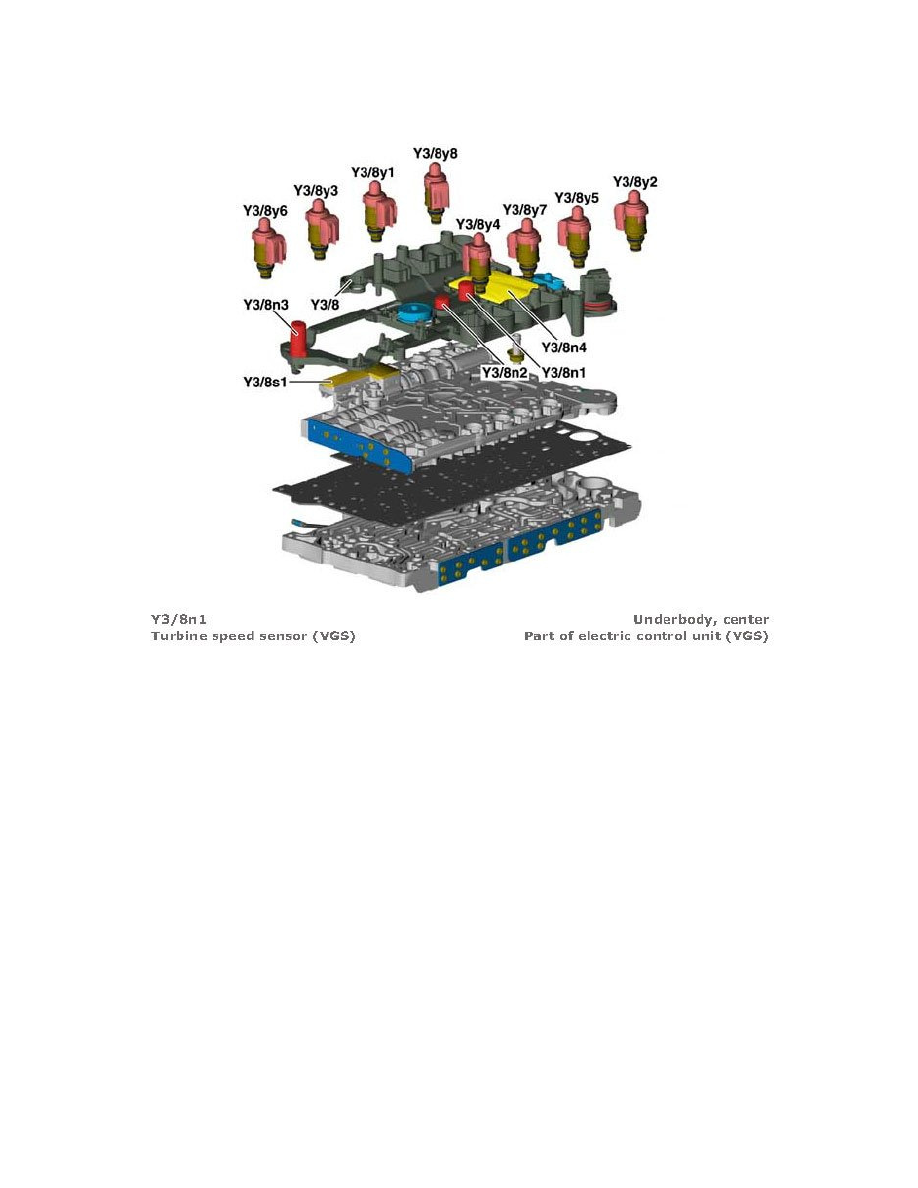

Turbine Speed Sensor (VGS) (View 1)
