R 350 4MATIC (251.165) V6-3.5L (272.967) (2006)

Page 1
background image

Transmission Temperature Sensor/Switch: Locations

Transmission Oil Temperature Sensor (VGS)

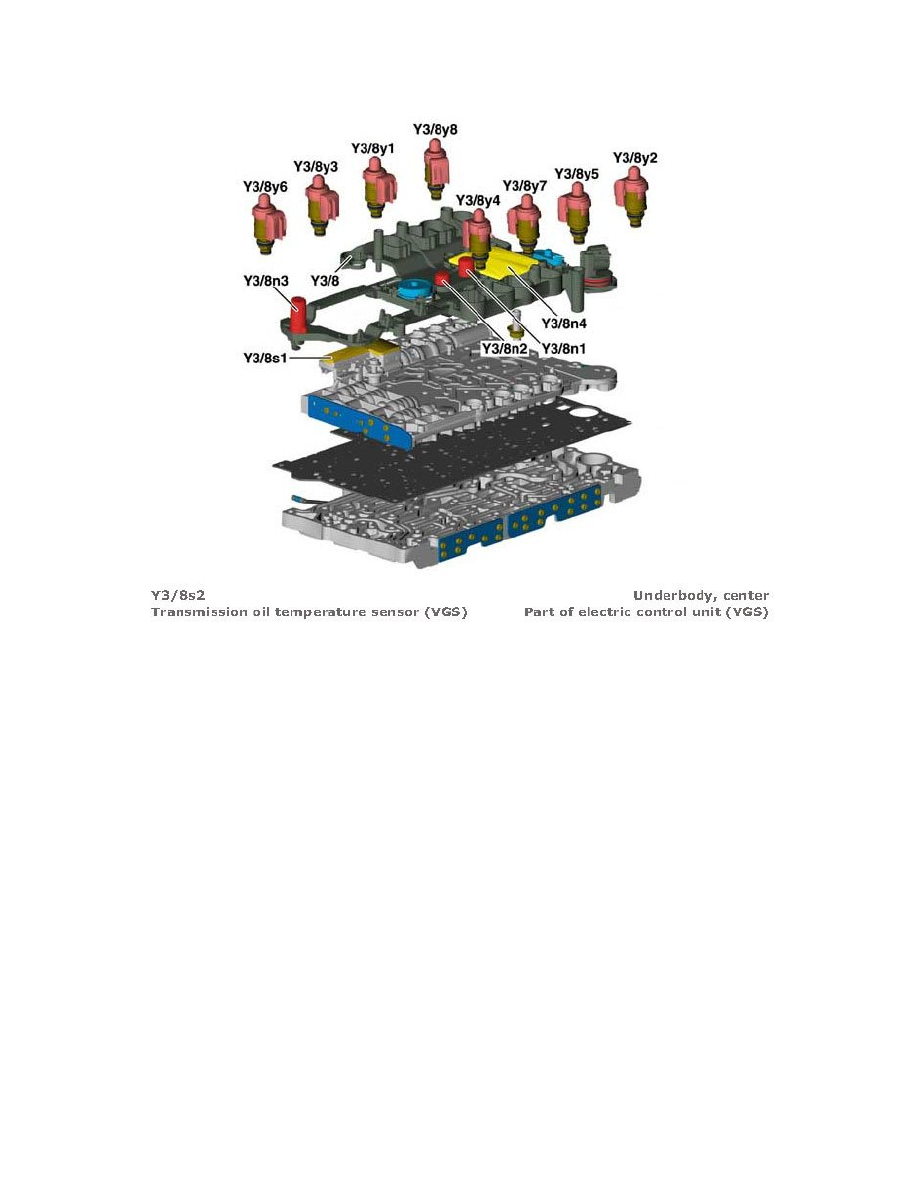

Transmission Oil Temperature Sensor (VGS) (View 1)
