S 350 (140.134) L6-3.5L DSL Turbo (603.971) (1995)

Page 1
background image

Condenser Fan Resistor: Locations
Auxiliary Fan Preresistors

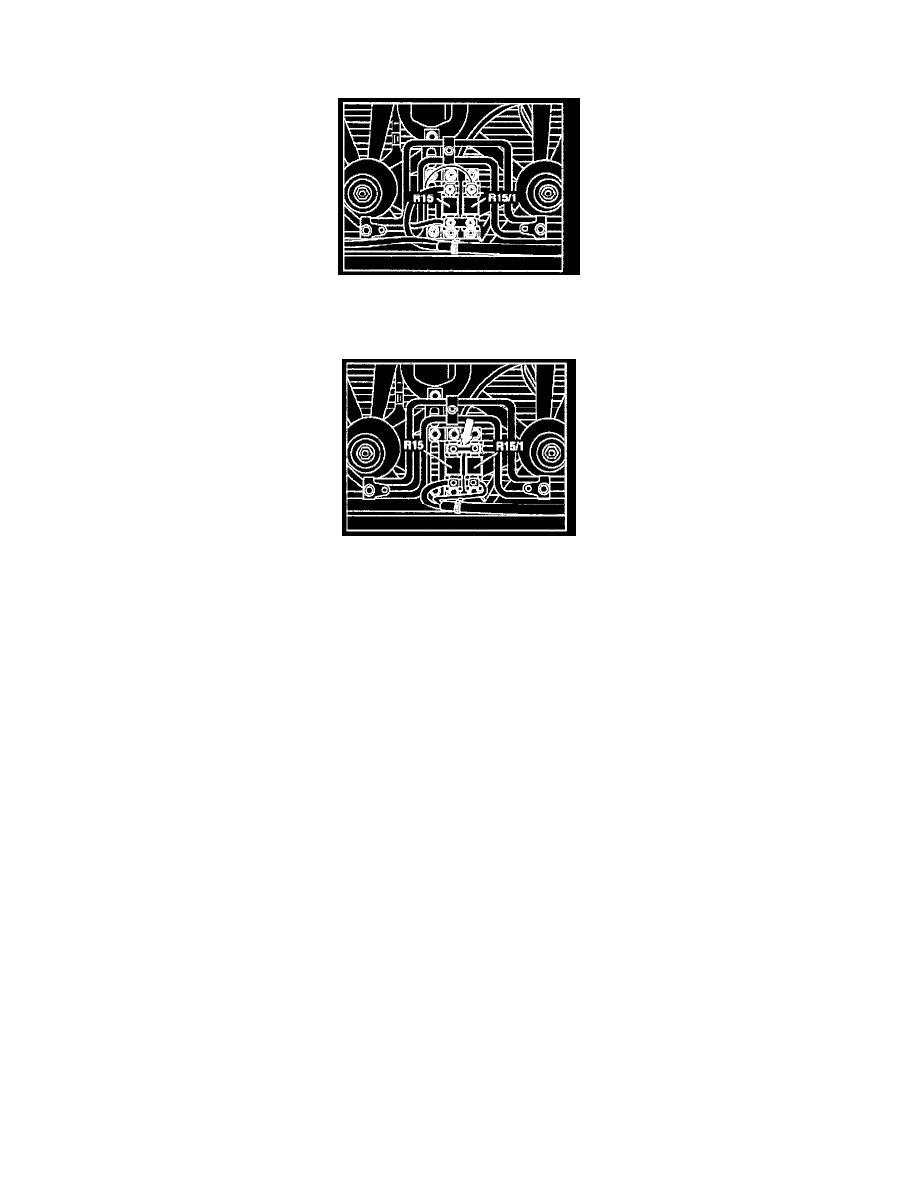

Location of connections to auxiliary fan preresistors (R15, R15/1) on 3-stage auxiliary fans.



Location of connections to auxiliary fan preresistors (R15, R15/1) on 2-stage auxiliary fans.
