S 65 AMG (220.179) V12-6.0L Turbo (275.981) (2006)

  • Body and Frame
  • Relays and Modules - Body and Frame
  • Door Module
  • Component Information
  • Locations
  • Door Control Module, Left Front - N69/1

Page 1
background image

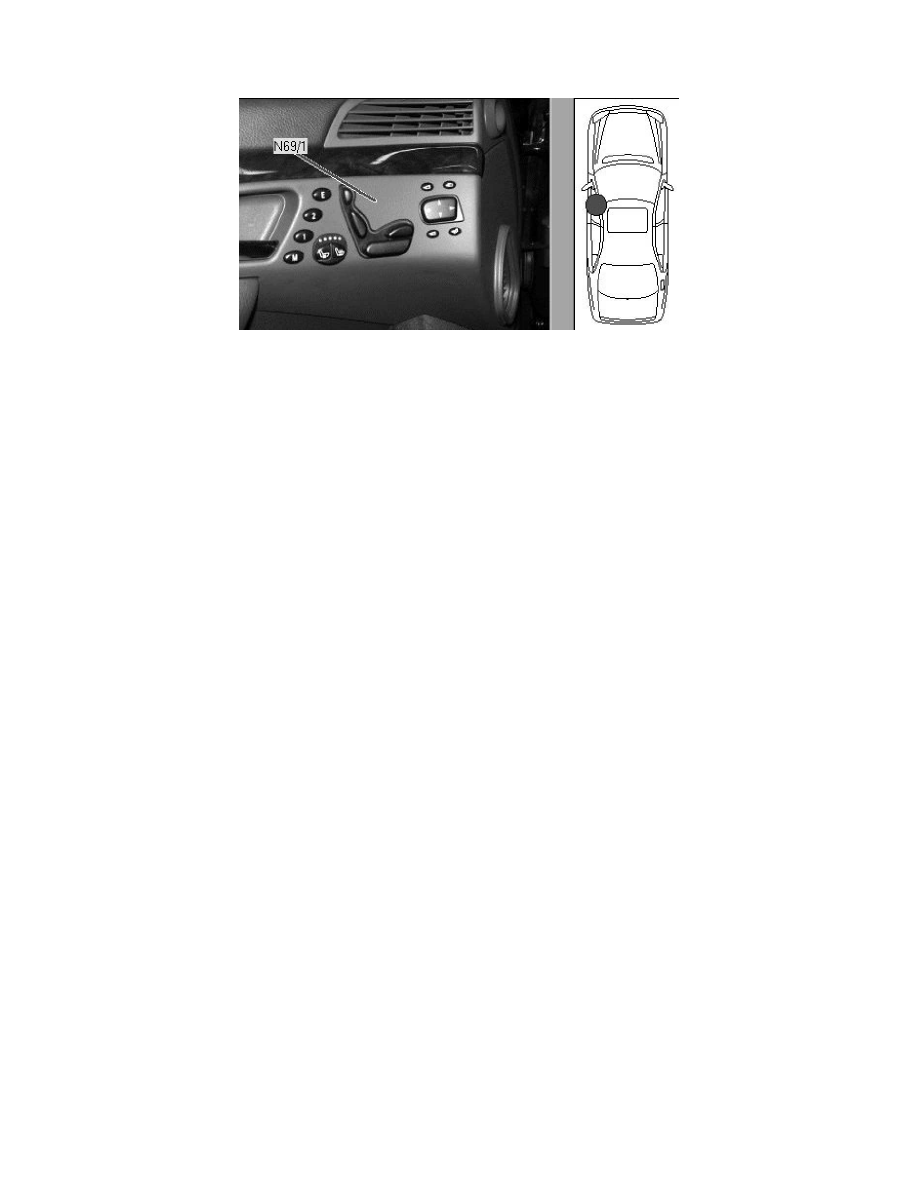

Door Module: Locations
Door Control Module, Left Front - N69/1

Door, left front
