S 65 AMG (220.179) V12-6.0L Turbo (275.981) (2006)

Page 1
background image

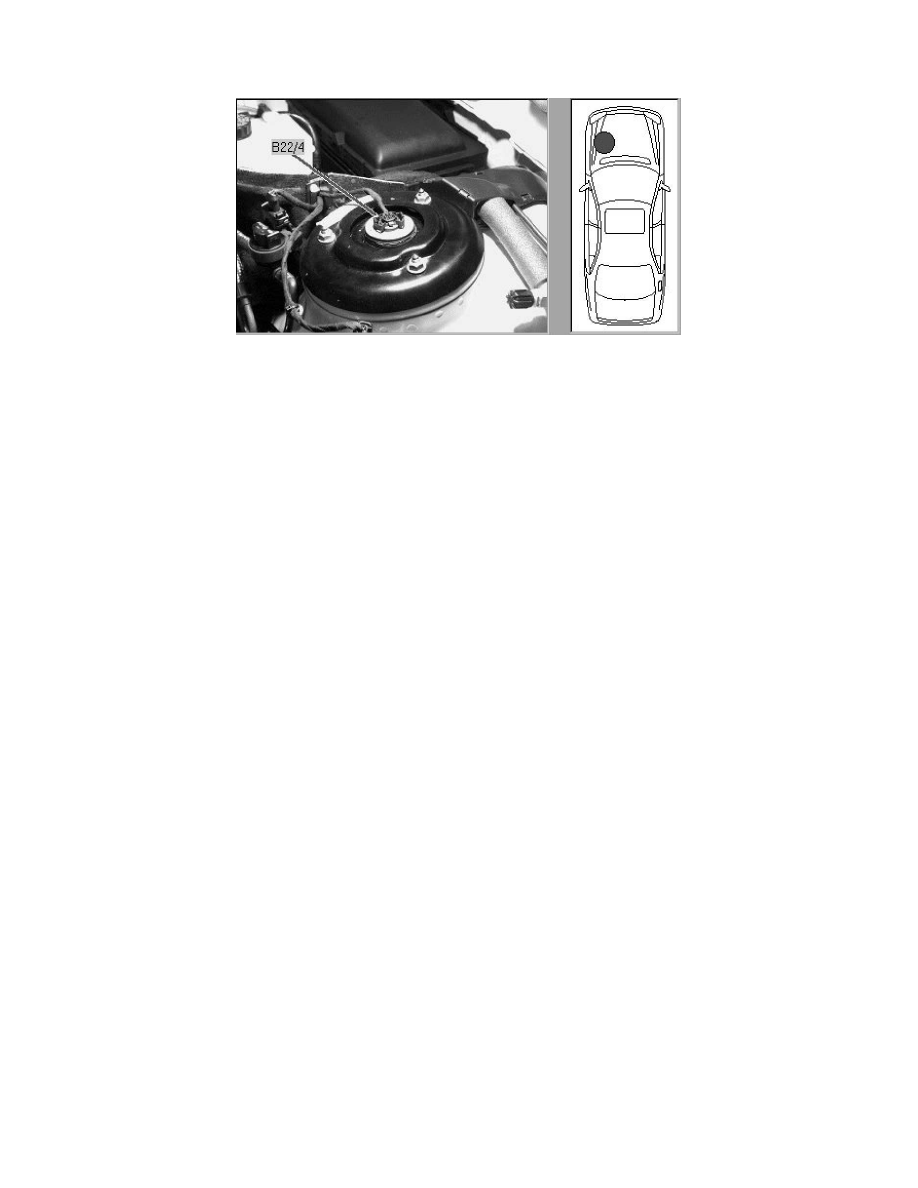

Road Surface Sensor: Locations
Plunger Travel Sensor, Left Front - B22/4

Engine compartment, left rear
