SL 500 (129.067) V8-5.0L (119.972) (1994)
/v8-5.0l_(119.972)/Page-2144001.png)
Cellular Phone Microphone: Service and Repair

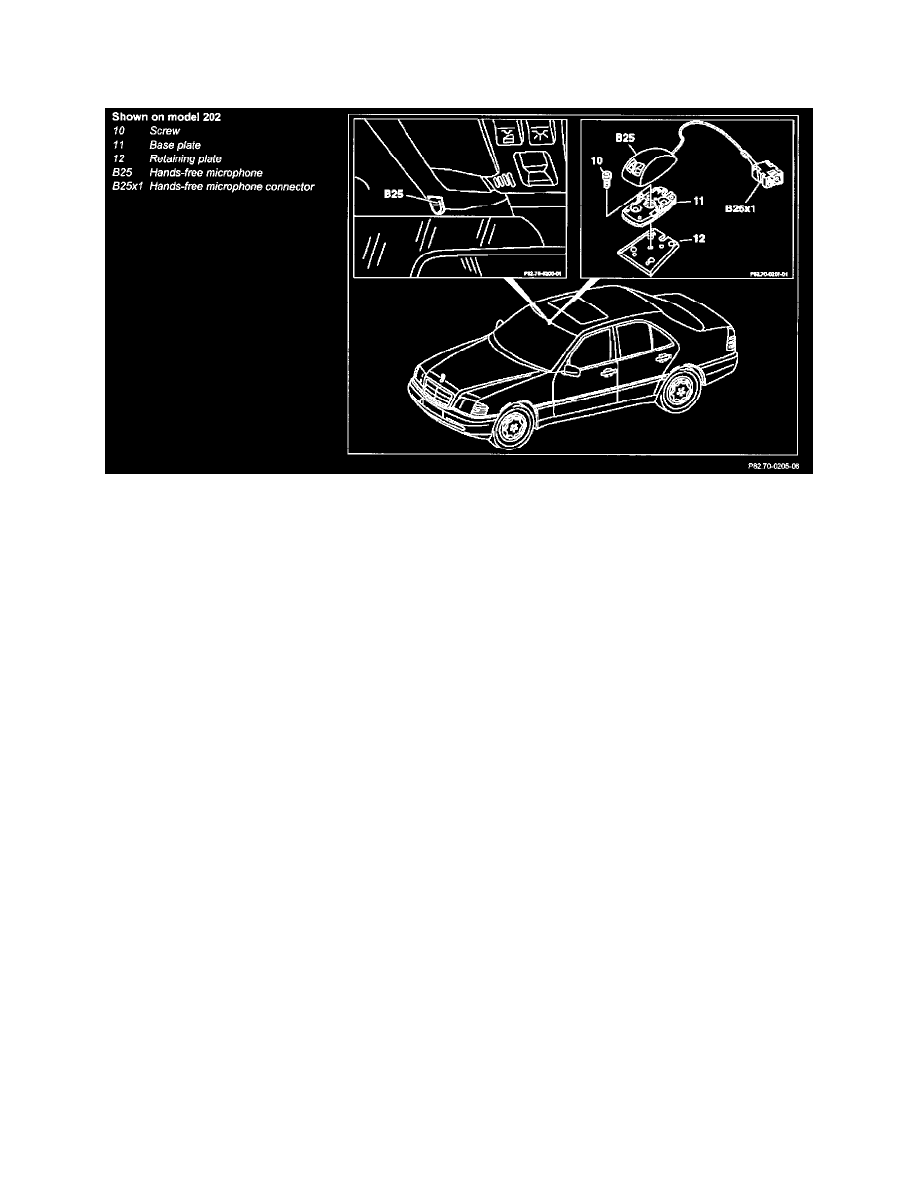

Removing And Installing Hands-Free System Microphone
Shown On Model 202
1
Remove dome lamp pushbutton unit
2
Remove dome lamp with time delay feature and reading lamp
3
Remove front dome lamp
4
Remove microphone
5
Unscrew screw (10) and remove base plate (11) with retaining plate (12)
6
Disconnect hands-free microphone connector (B25x1)
7
Install in reverse order
