SL 500 (129.067) V8-5.0L (119.972) (1994)

Page 1
background image

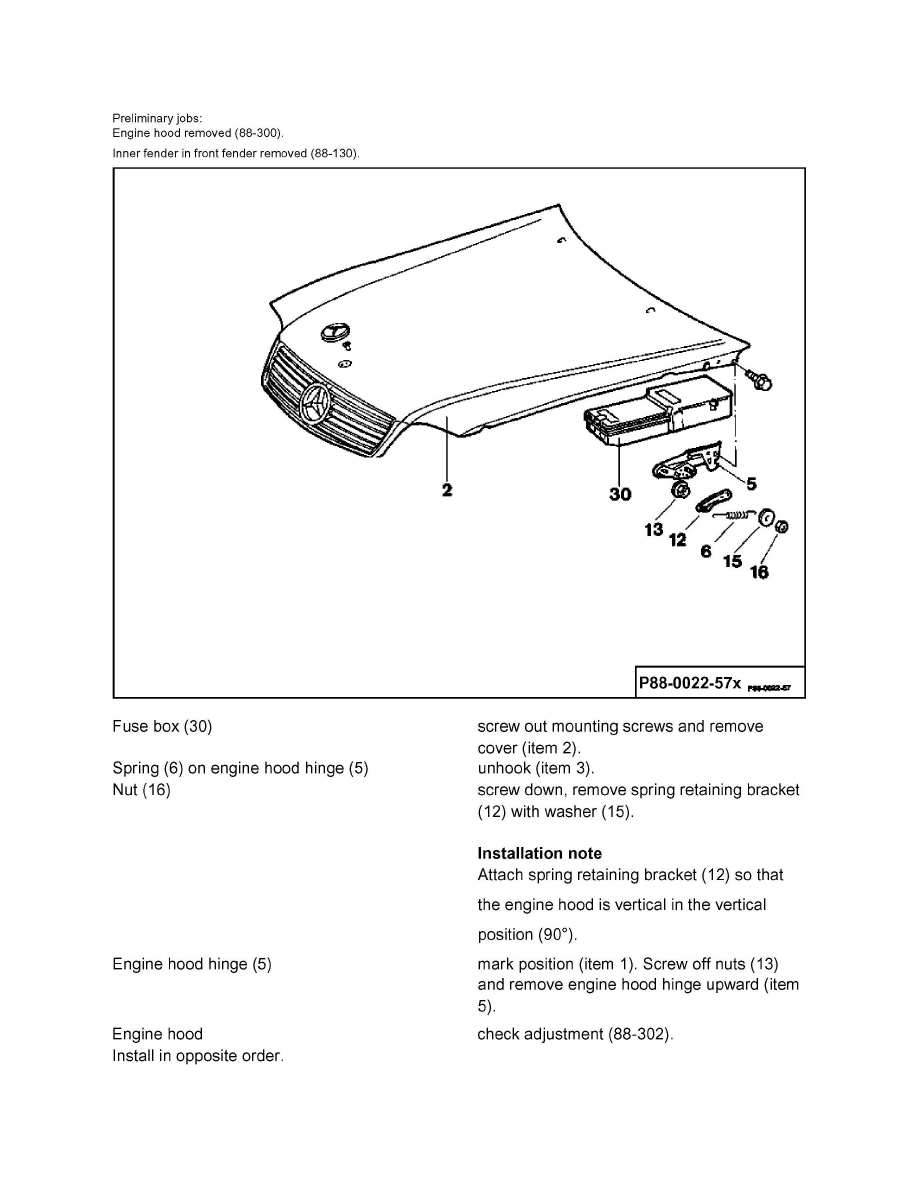

Hood Hinge: Service and Repair

88-306 Removal And Installation Of Engine Hood Hinges

Removal, Installation

1

Mark position of engine hood hinge on wheel house in engine compartment.
