Roll Bar Control Module|Locations|Page 8280 > < Roll Bar Control Module|Locations|Page 8278

SL 500 (129.067) V8-5.0L (119.972) (1994)

Page 3
background image

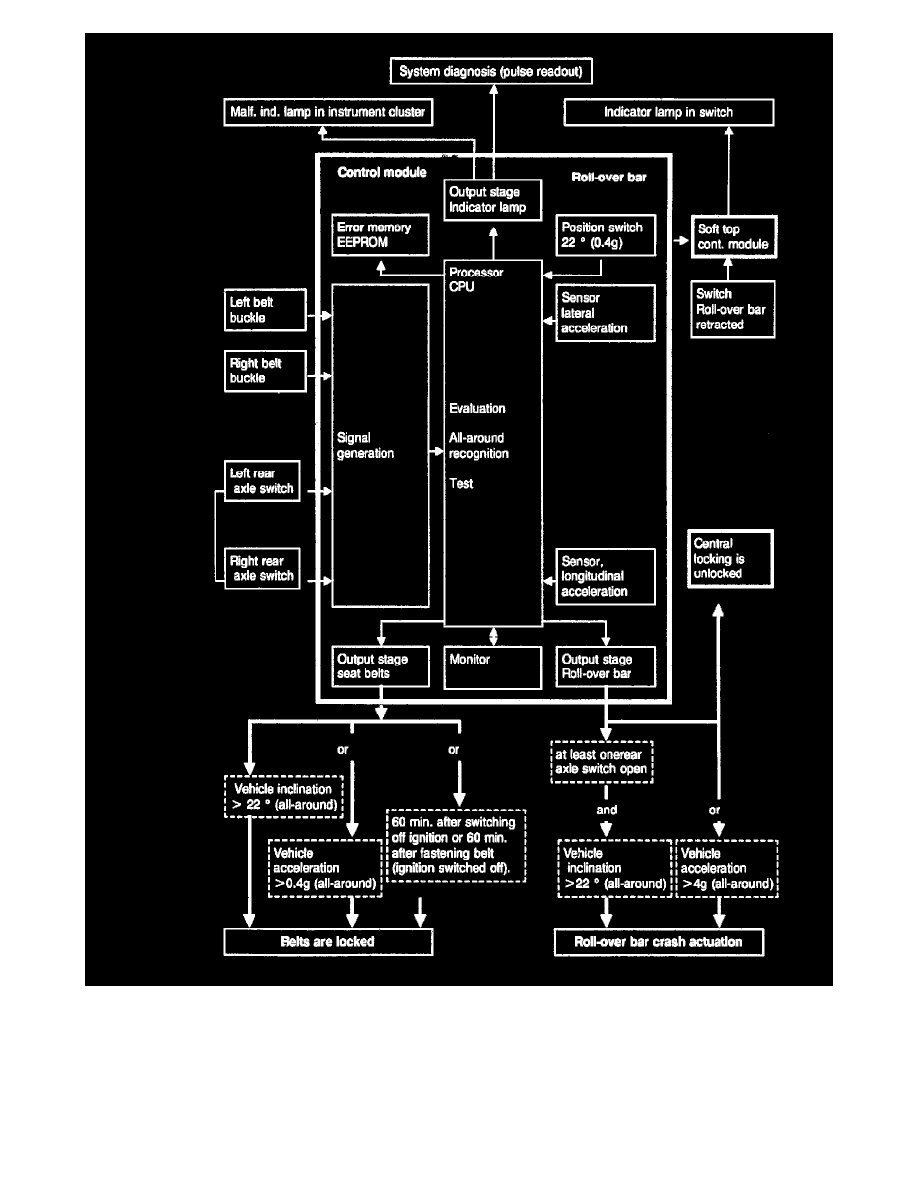

Block diagram, overall function, roll-over bar on version up to approx. 05/95
