SL 500 (129.067) V8-5.0L (119.972) (1994)
/v8-5.0l_(119.972)/Page-2450003.png)
4

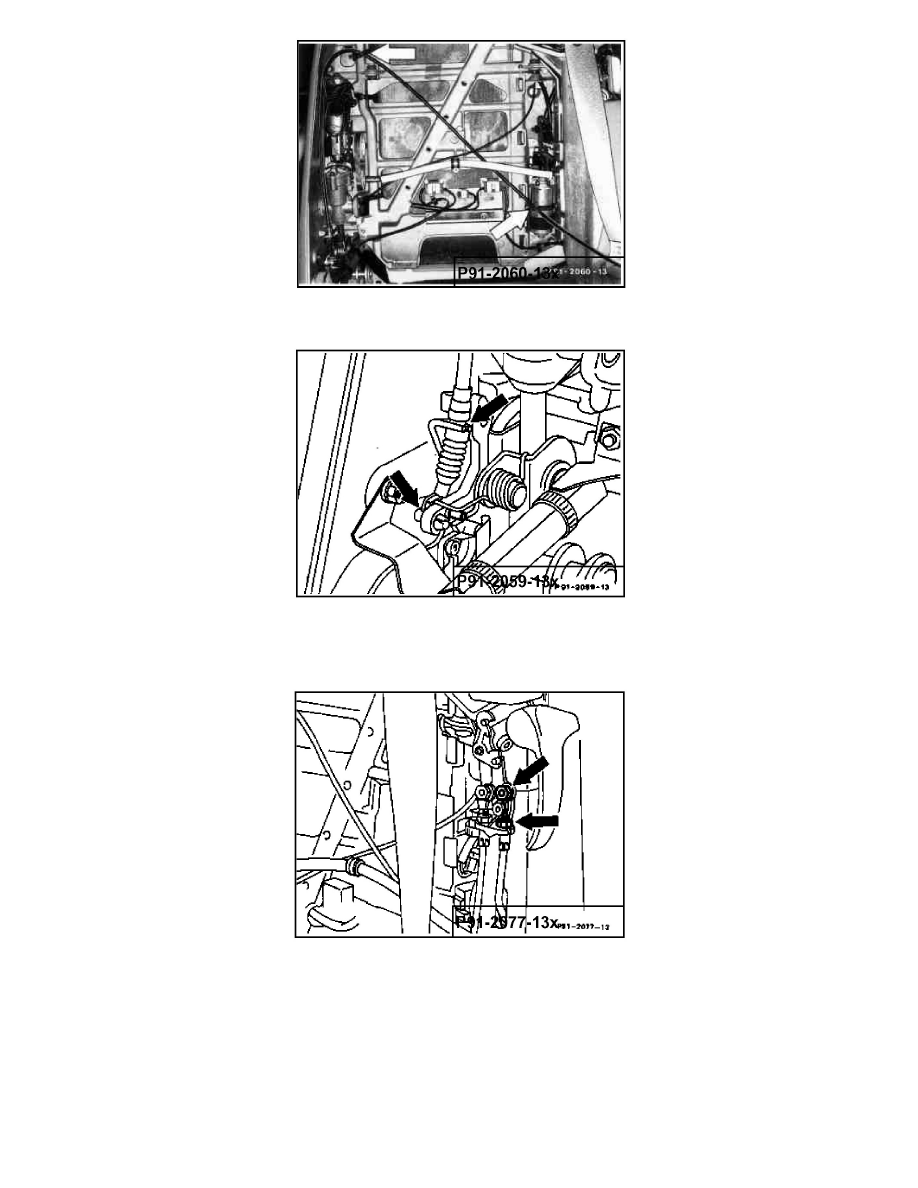

Open cable straps and expose control cable.
5
Unhook control cable on backrest lock while observing bellows and completely remove pull cable.
6
Install control cable and adjust to play of 0 - 1 mm.
7
Reinstall in opposite order.
Control cable for outside backrest lock
1
Remove side covering on backrest frame (91-060).
2
Loosen clamping nut on release handle and screw nut off of pull sleeve (arrows).
3
Unhook control cable and pull sleeve on release handle.
