SL 500 (129.067) V8-5.0L (119.972) (1994)

Page 1
background image

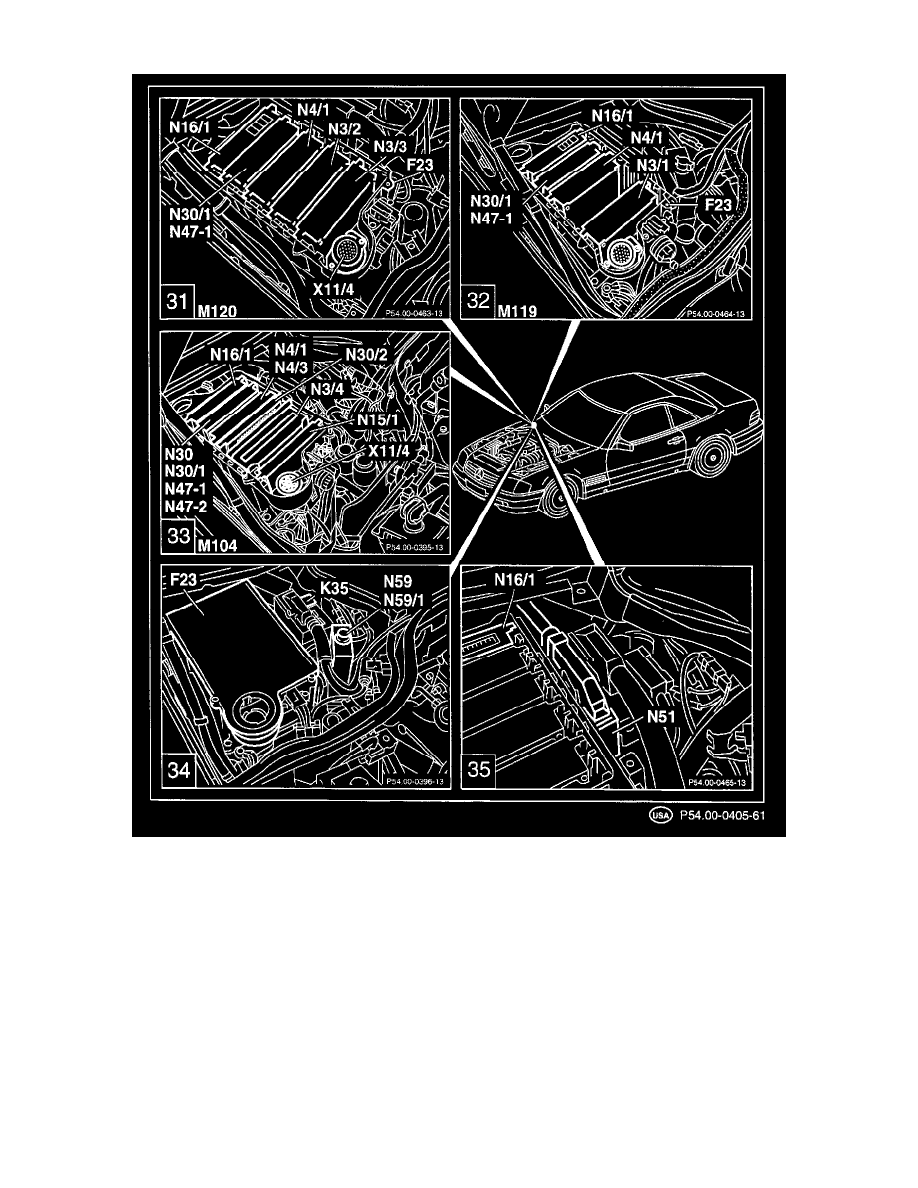

Electronic Brake Control Module: Locations

Figure

31-33

Component Name

ASR control module (in Module Box)

Component ID

N30/1
