Diagram Information and Instructions|Page 4116 > < Diagram Information and Instructions|Page 4114

SL 500 (129.067) V8-5.0L (119.972) (1994)

Page 3
background image

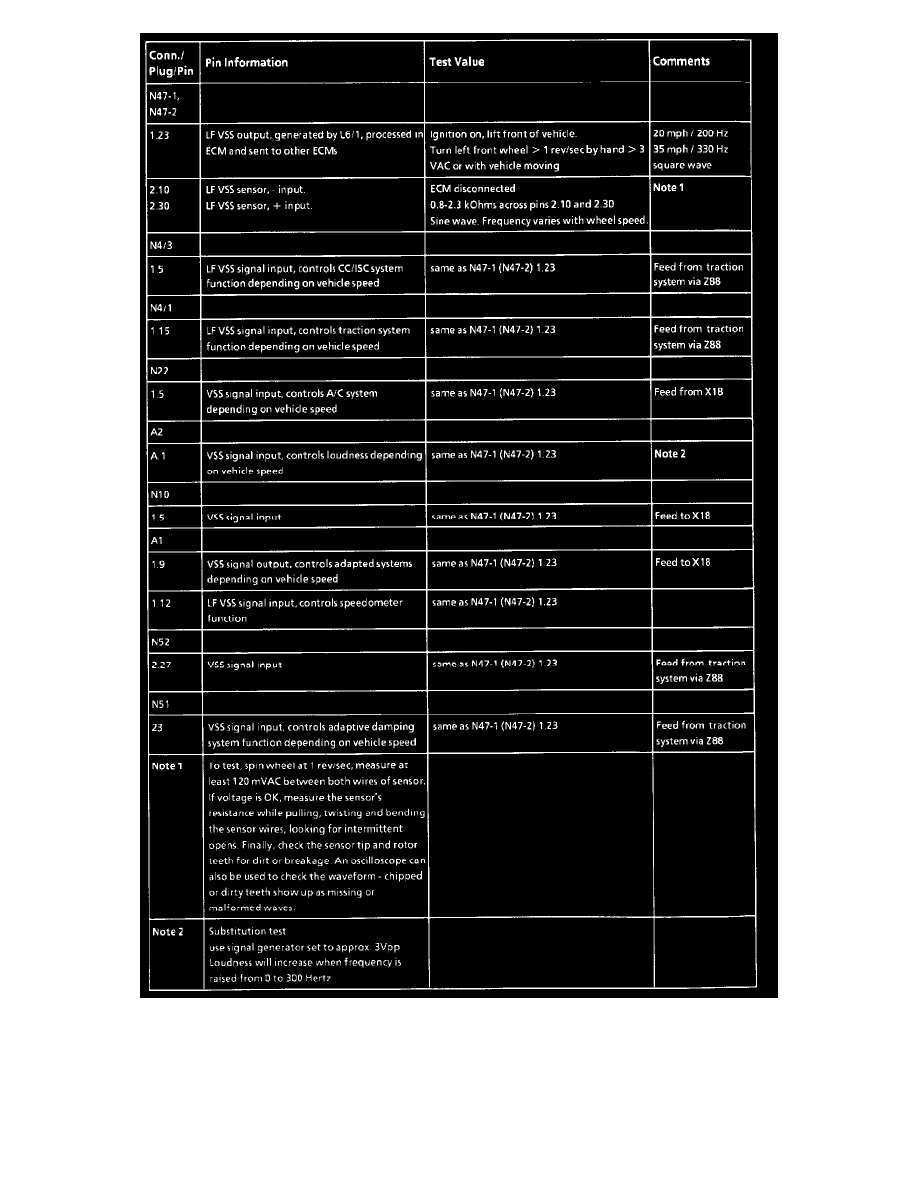

Pin Information

All values measured to ground unless otherwise noted.

Left/Right Rear Axle Speed Signal (VSS) PE00.19-U-2100YC

Wiring Diagram
