Mercedes Benz Workshop Service and Repair Manuals > SL 500 (129.067) V8-5.0L (119.972) (1994) > Powertrain Management | Relays and Modules - Powertrain Management | Relays and Modules - Computers and Control Systems | Engine Control Module | Component Information | Description and Operation | Ignition (EZL/AKR) | Page 3338

Ignition (EZL/AKR)|Page 3339 > < Ignition (EZL/AKR)|Page 3337

Page 3

background image

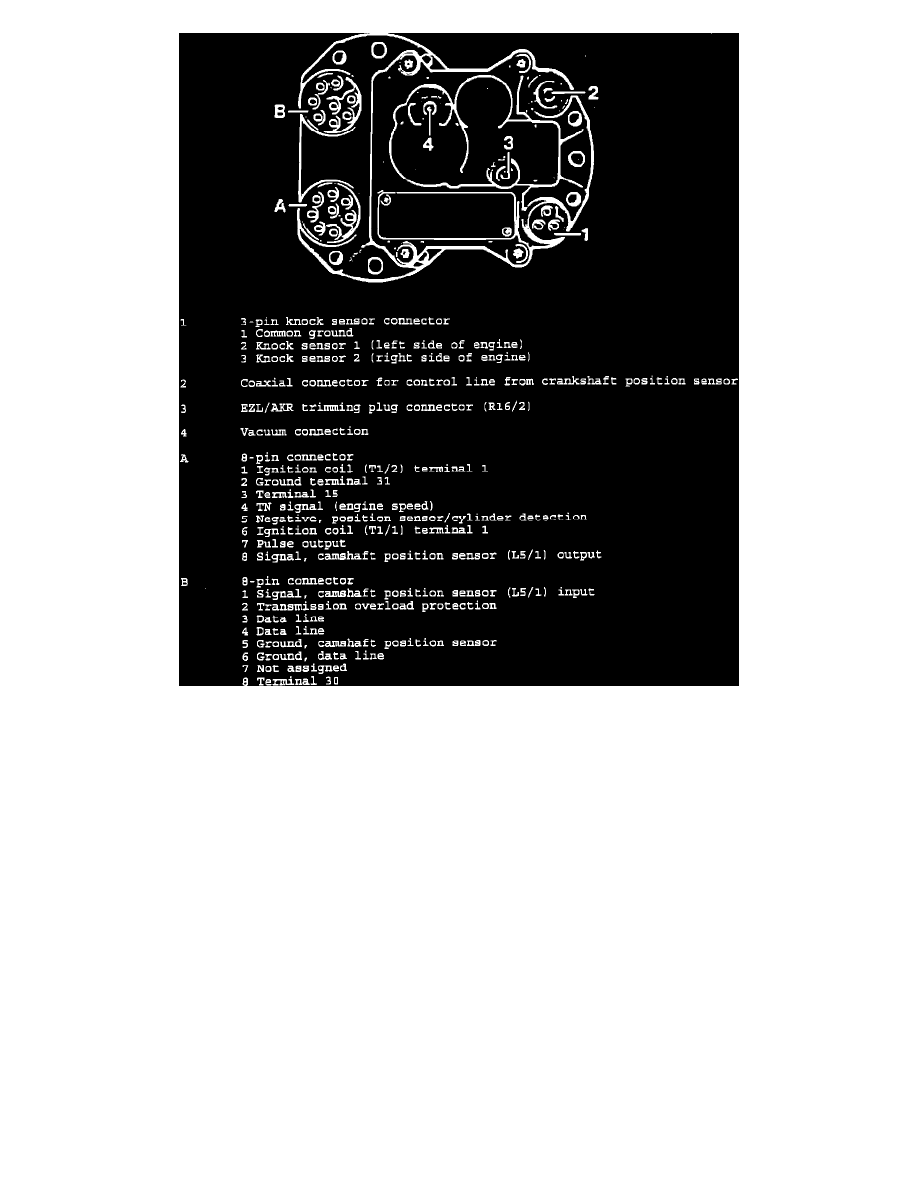

EZL/AKR Control Unit Pin I.D.

Powertrain Management
Relays and Modules - Powertrain Management / Relays and Modules - Computers and Control Systems
Engine Control Module / Component Information
Description and Operation / Ignition (EZL/AKR)
Page 3338

Ignition (EZL/AKR)|Page 3339 > < Ignition (EZL/AKR)|Page 3337
