SL 500 (230.475) V8-5.0L (113.963) (2004)

Page 1
background image

Convertible Top Relay: Description and Operation

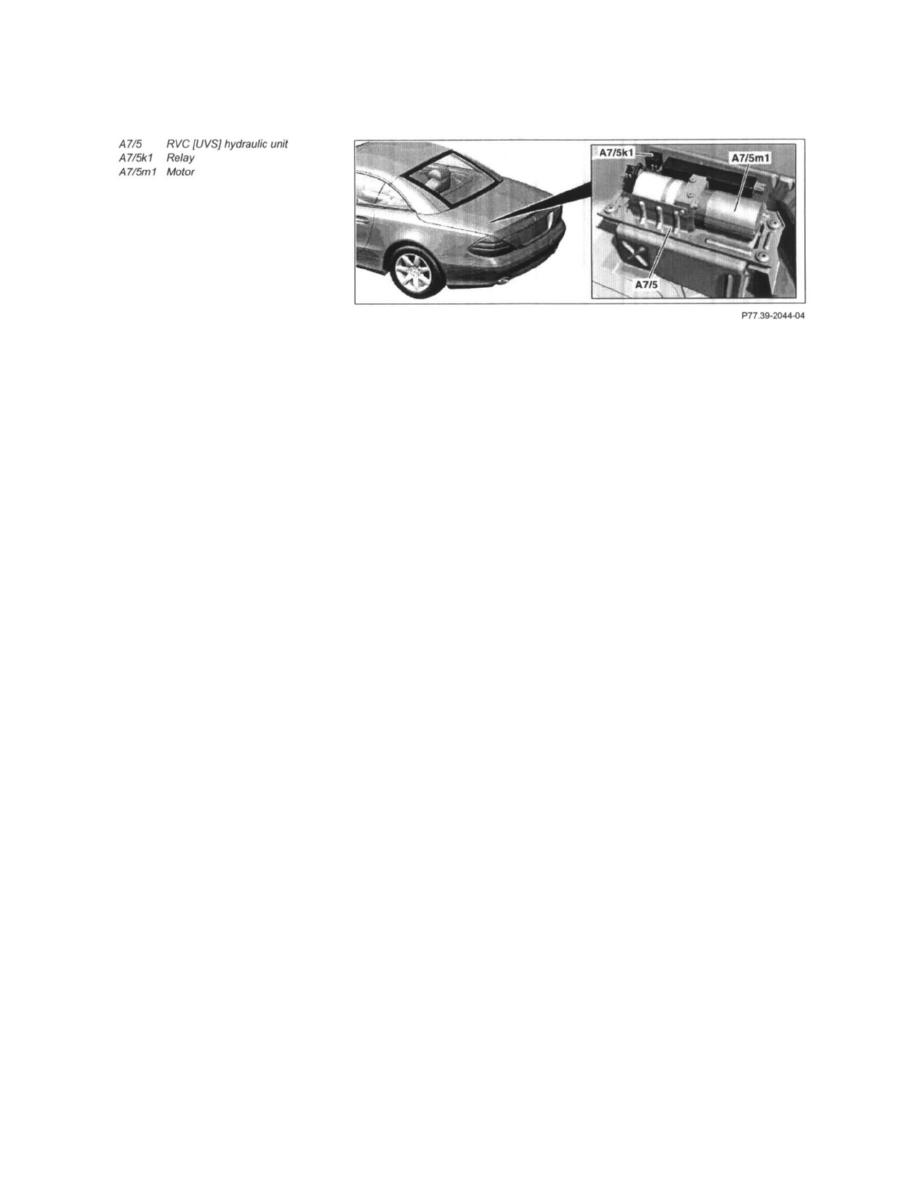

Hydraulic Unit Relay, Location/Purpose

Hydraulic Unit Relay, Location/Purpose

Location

On RVC hydraulic unit (A7/5)

Purpose

Supplying power with the motor (A7/5m1) for the RVC hydraulic unit (A7/5).
