Convertible Top Switch: Component Locations

Vario-Roof "Closed" Limit Switch (Right Lug)

Vario-Roof "Closed" Limit Switch (Right Lug)

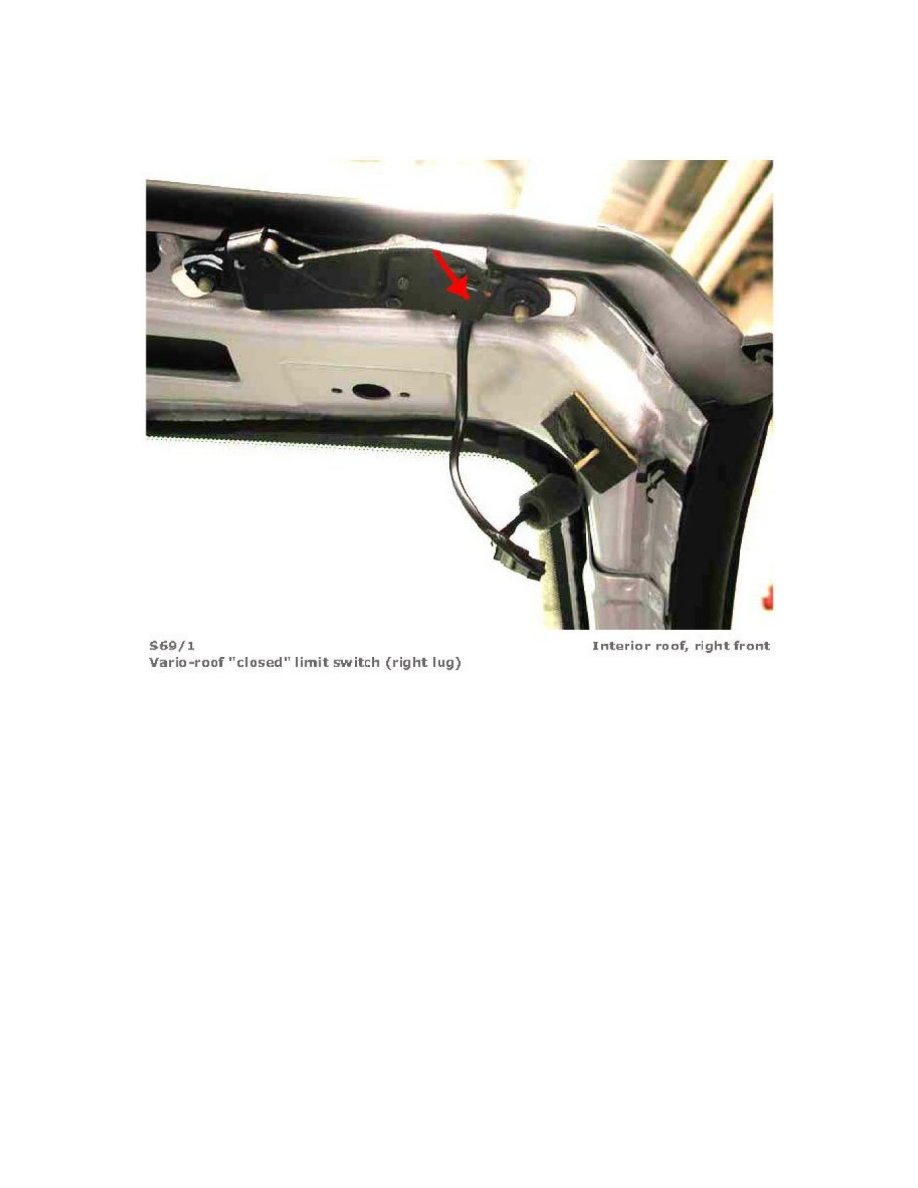

Vario-Roof "Closed" Limit Switch (Right Lug) (View 1)
