SL 600 (230.476) V12-5.5L Turbo (275.951) (2004)

Page 1
background image

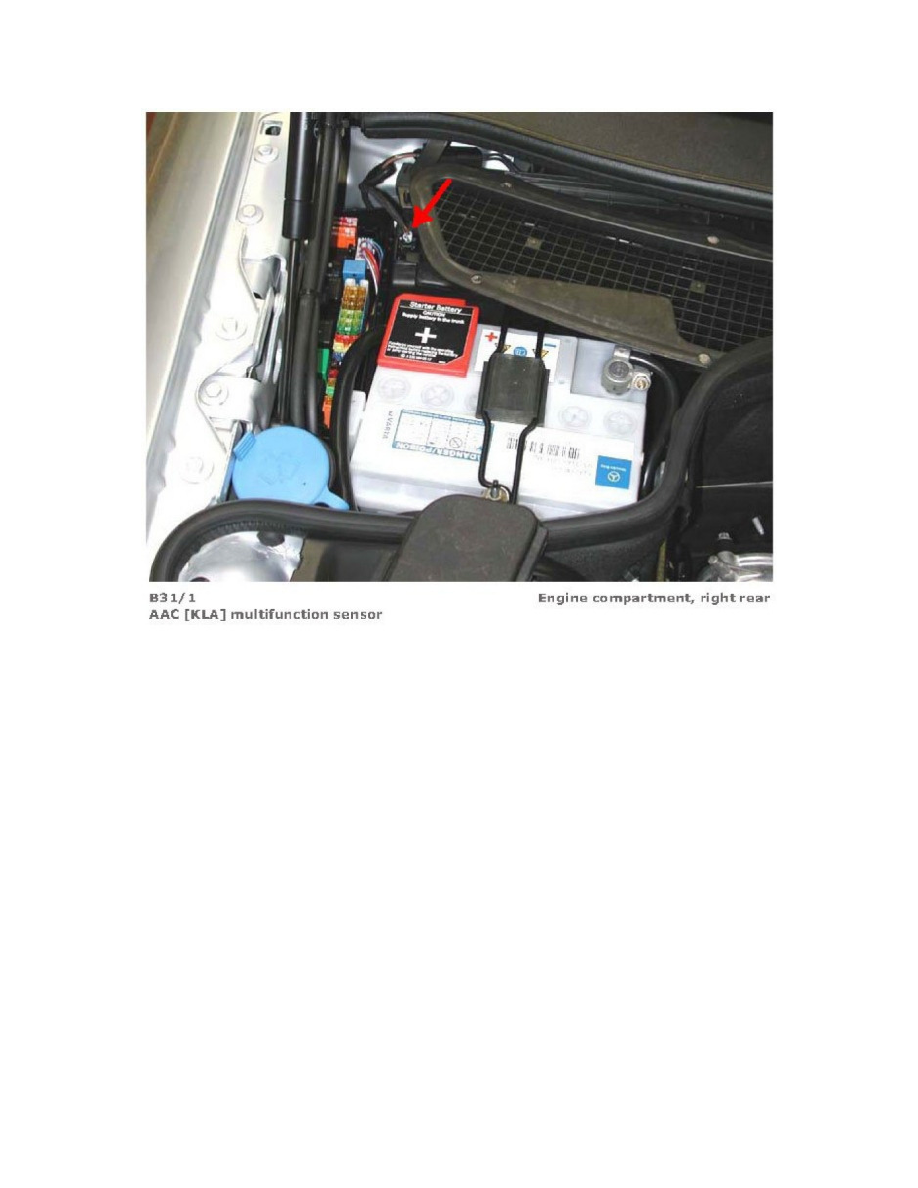

Multi-Function Thermal Sensor / Switch: Locations

AAC [KLA] Multifunction Sensor

AAC [KLA] Multifunction Sensor (View 1)
