SL 600 (230.476) V12-5.5L Turbo (275.951) (2004)

Page 1
background image

Air Filter Restriction Sensor / Switch: Locations
Pressure Sensor Downstream of Air Cleaner, Left Cylinder Bank

Pressure Sensor Downstream of Air Cleaner, Left Cylinder Bank

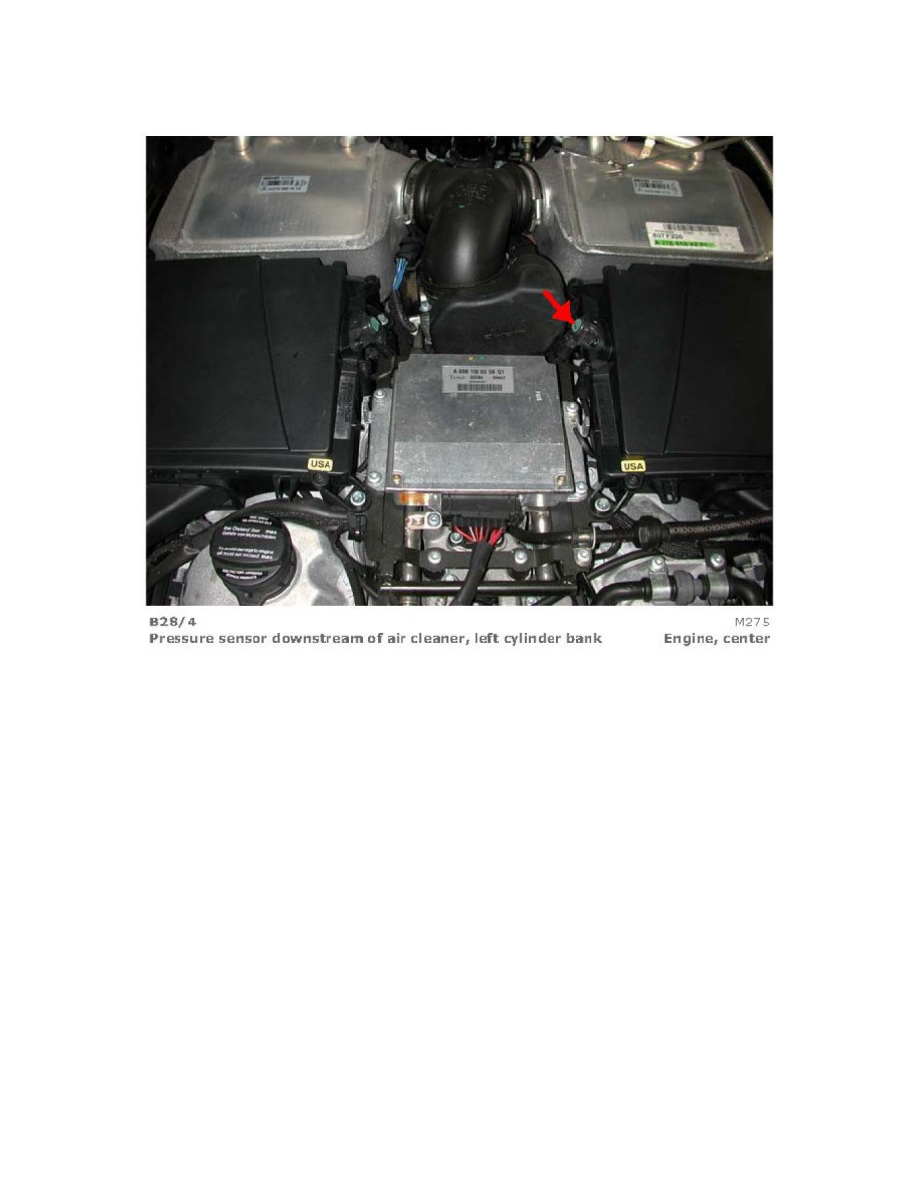

Pressure Sensor Downstream Of Air Cleaner, Left Cylinder Bank (View 1)
