SL 600 (230.476) V12-5.5L Turbo (275.951) (2004)

Page 1
background image

Turbo Boost Sensor: Locations
Pressure Sensor Downstream of Throttle Valve Actuator

Pressure Sensor Downstream of Throttle Valve Actuator

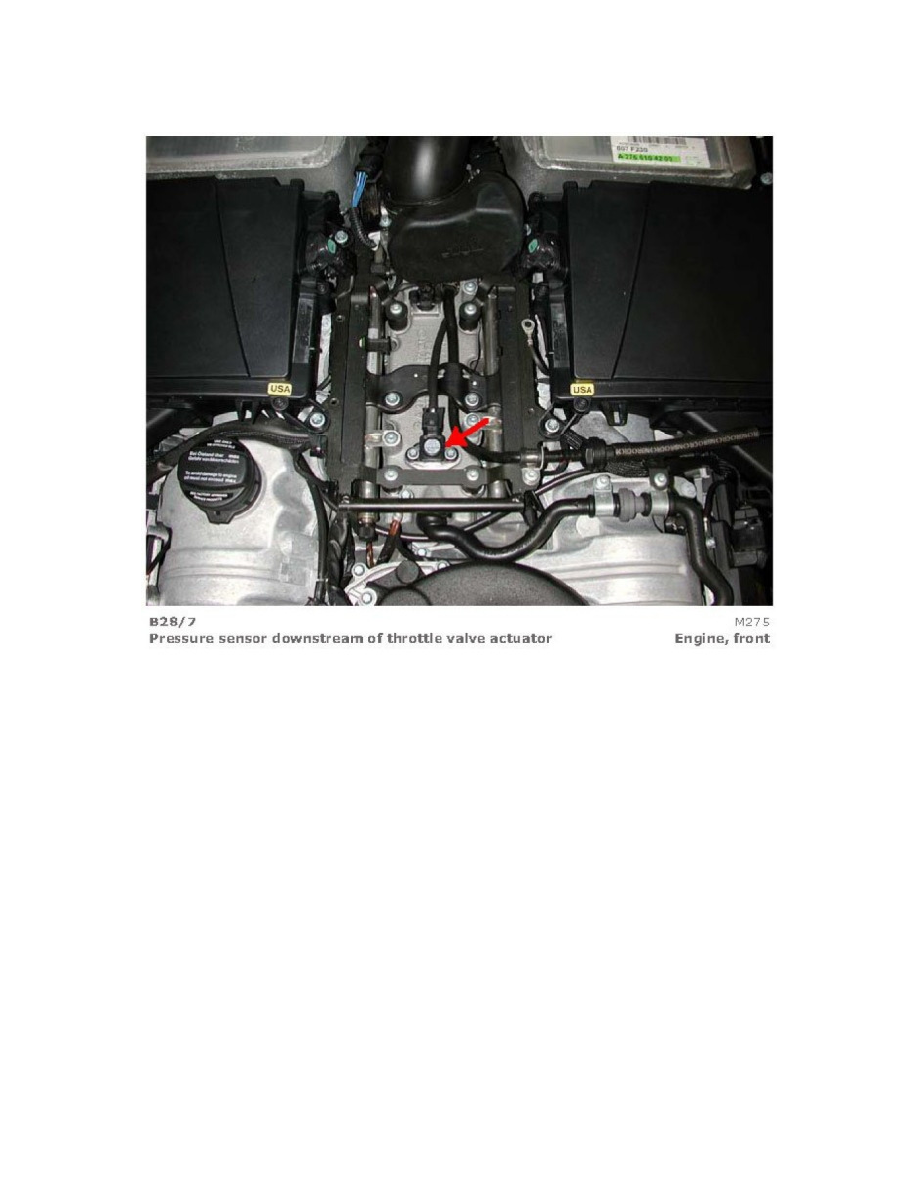

Pressure Sensor Downstream Of Throttle Valve Actuator (View 1)
