SL 600 (230.476) V12-5.5L Turbo (275.951) (2004)

Page 1
background image

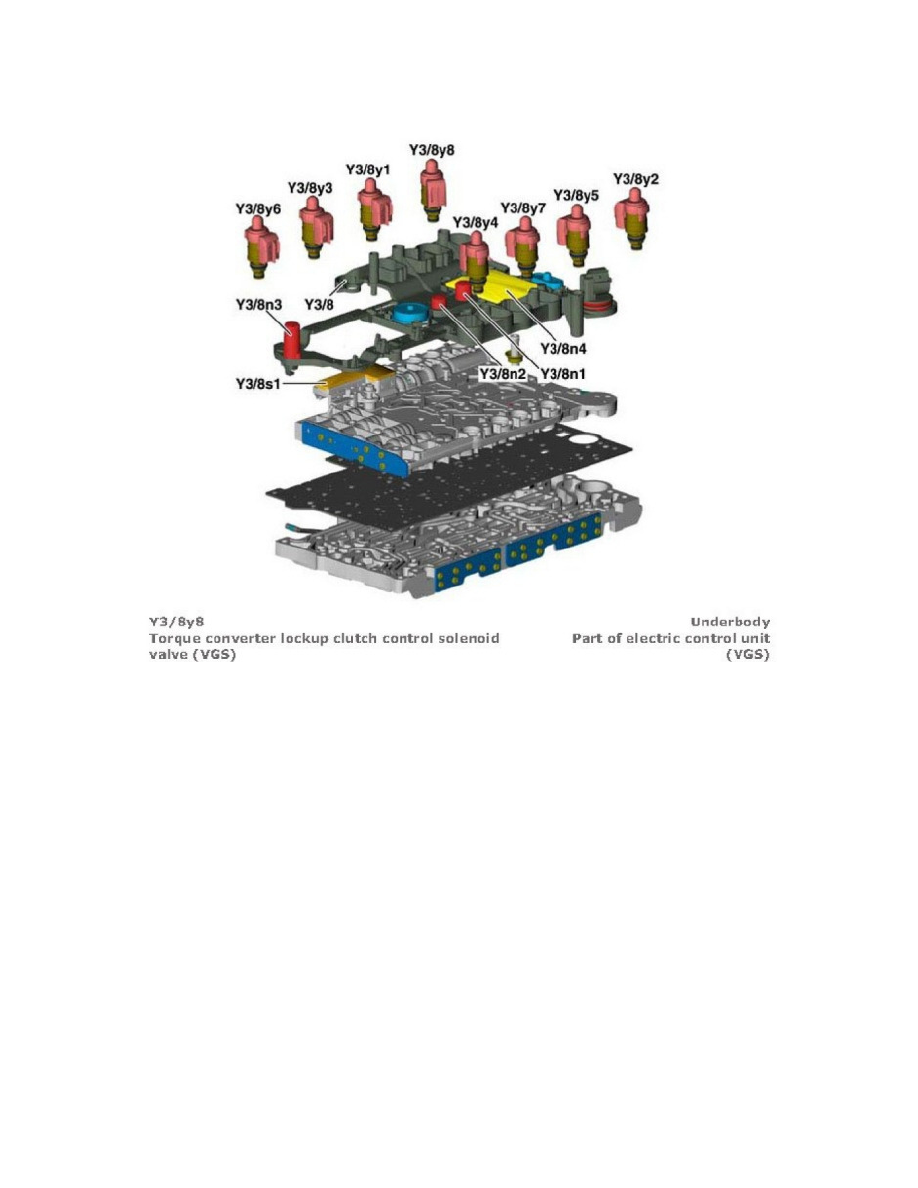

Torque Converter Clutch Solenoid: Locations
Torque Converter Lockup Clutch Control Solenoid Valve (VGS)

Torque Converter Lockup Clutch Control Solenoid Valve (VGS)

Torque Converter Lockup Clutch Control Solenoid Valve (VGS) (View 1)
