SL 600 (230.477) V12-5.5L Turbo (275.954) (2007)

Page 1
background image

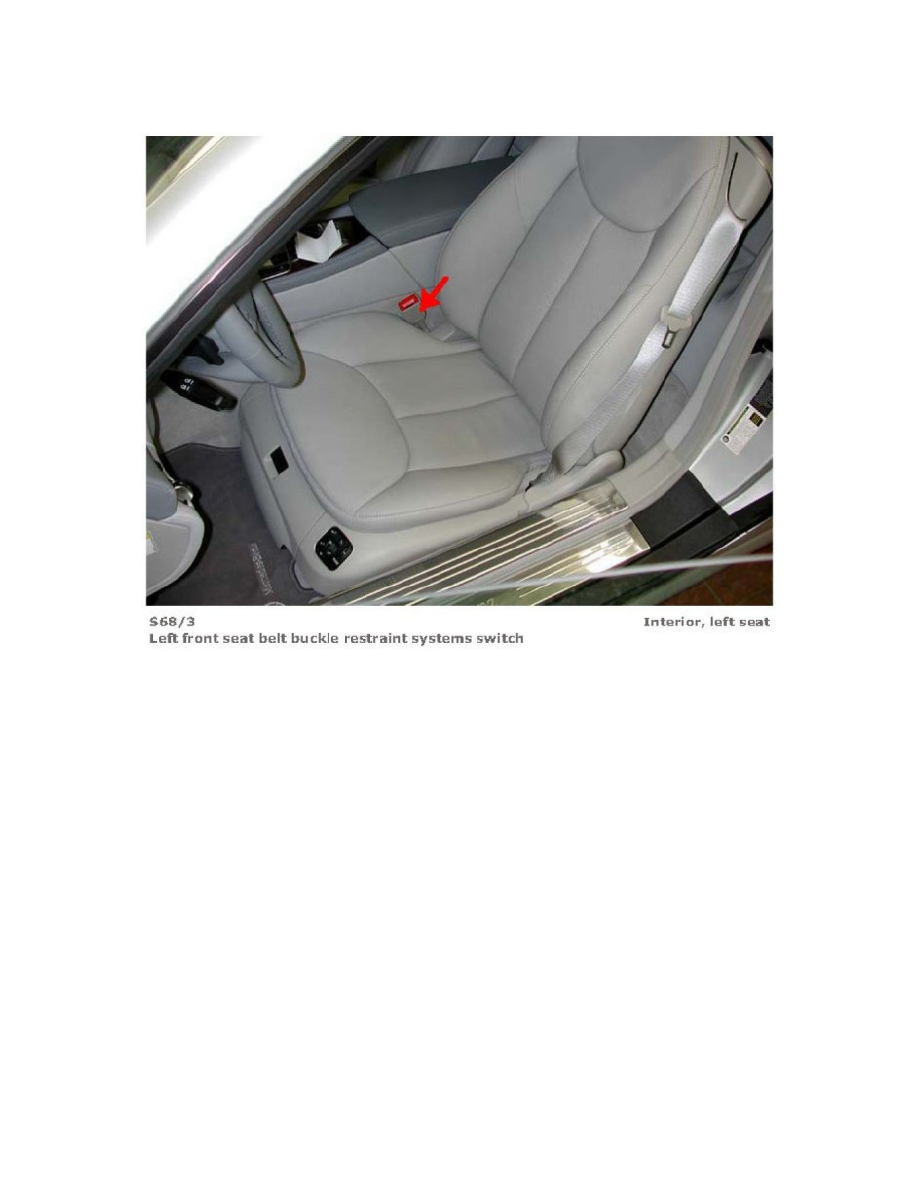

Seat Belt Buckle Switch: Locations
Seat Belt Buckle Restraint Systems Switch, Front, Left

Seat Belt Buckle Restraint Systems Switch, Front, Left

Left Front Seat Belt Buckle Restraint Systems Switch
