SL 600 (230.477) V12-5.5L Turbo (275.954) (2007)

Page 1
background image

Suspension Fluid Temperature Sensor: Locations

ABC Oil Temperature Sensor

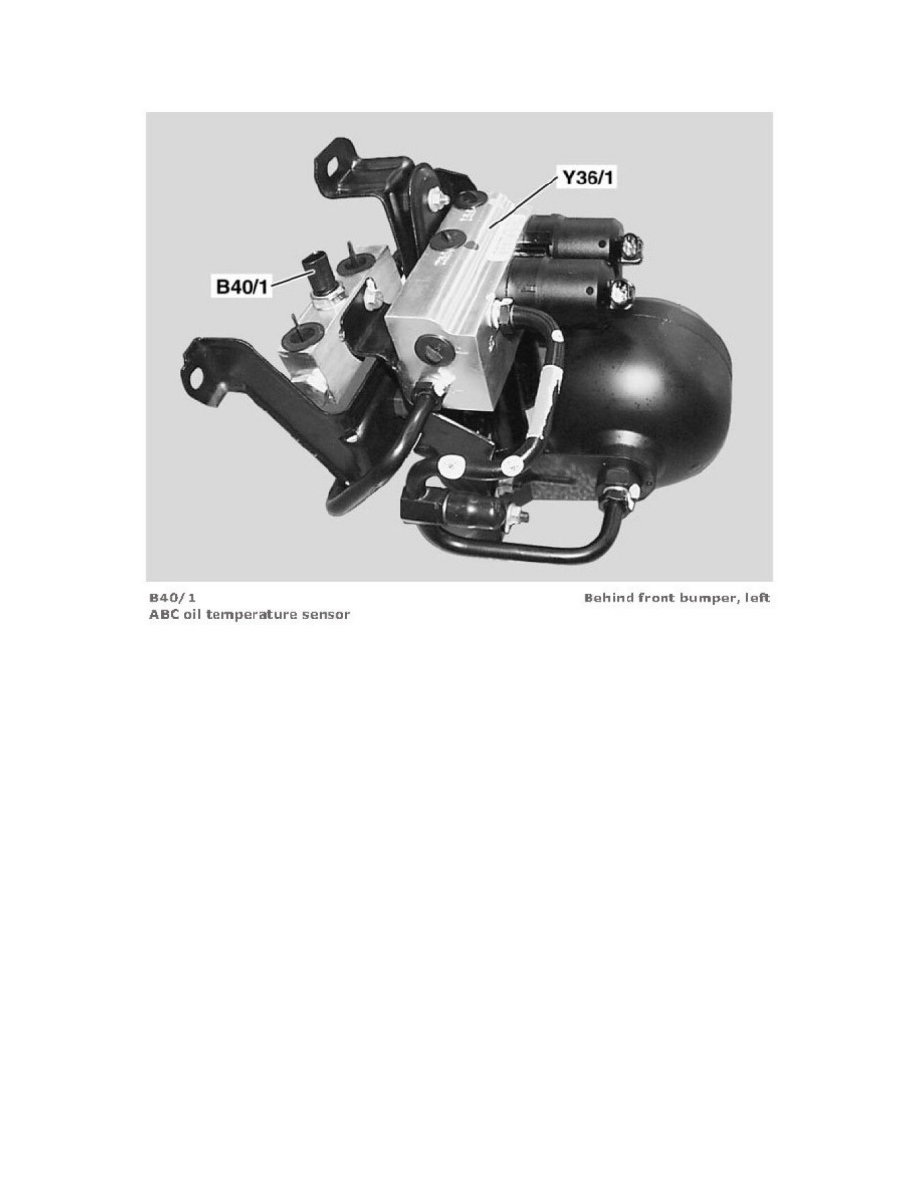

ABC Oil Temperature Sensor (View 1)
