SL 600 (230.477) V12-5.5L Turbo (275.954) (2007)

Page 1
background image

Rear Subframe: Service and Repair
AR35.10-P-0010R Remove/Install Complete Rear Axle

AR35.10-P-0010R Remove/install complete rear axle

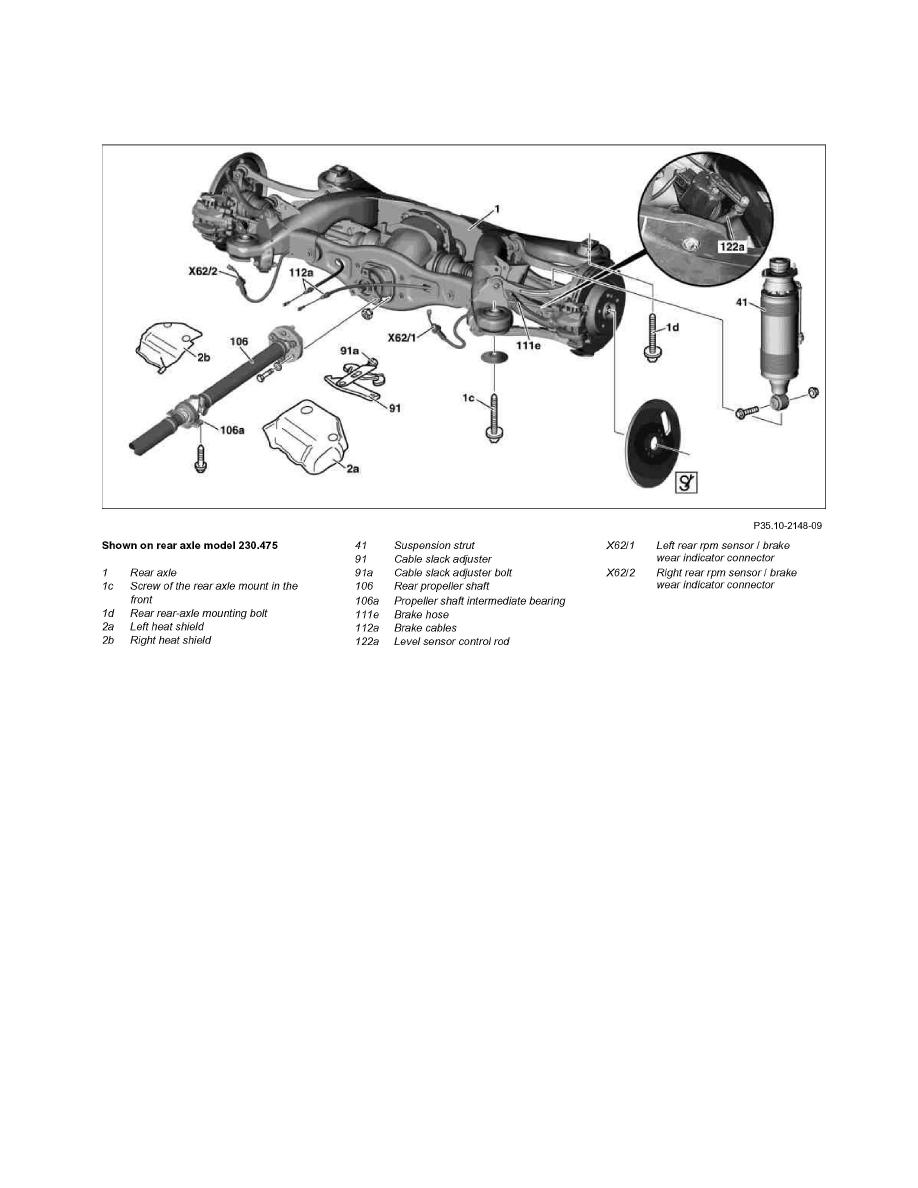

Component Identification

Shown on rear axle model 230.475
