Vario Roof Position Sensor/Switch: Description and Operation

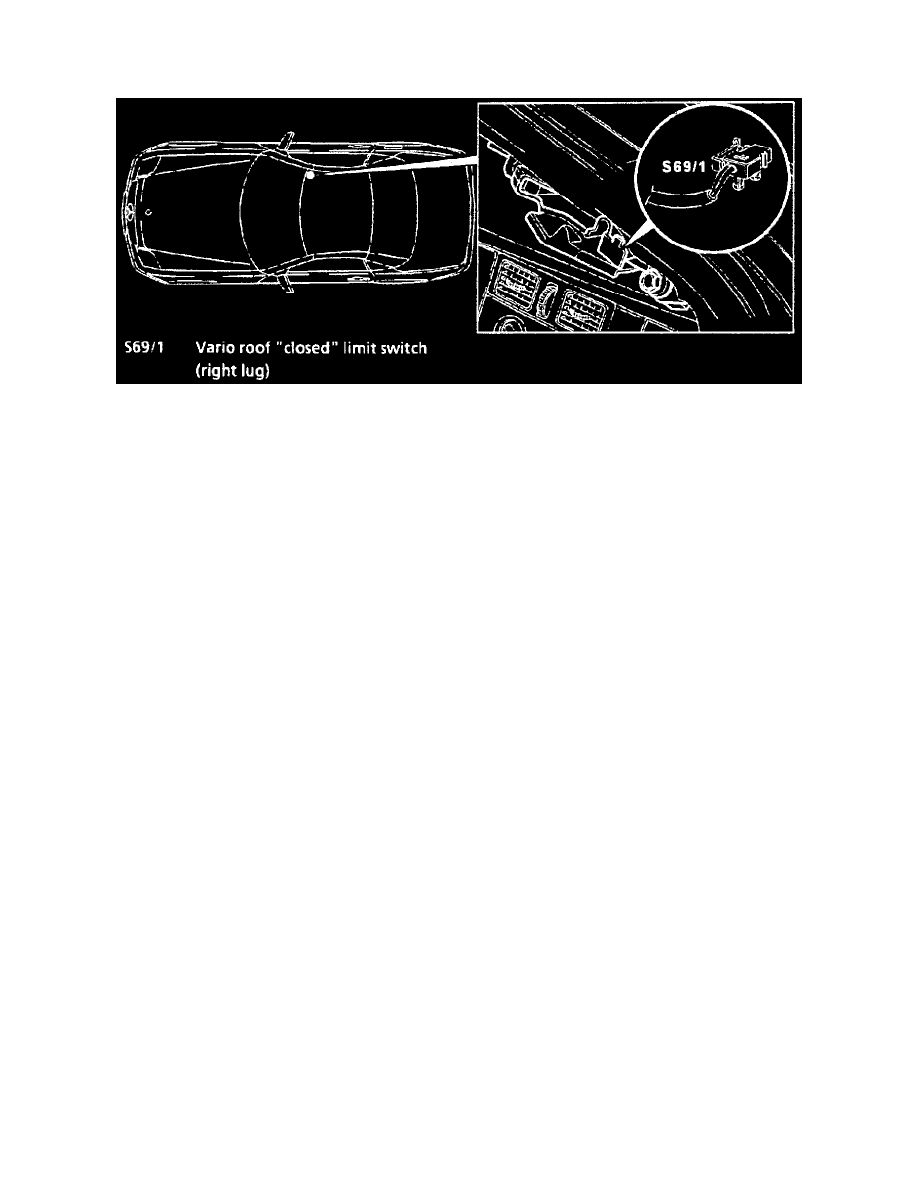

Vario Roof "Closed" Limit Switch (Right Lug)

Location

In right catch on cross member above windshield

Purpose

To connect ground signal through to combination control module (N10-3) as soon as lug on Vario roof has reached catch in windshield (Vario
roof closed).
