Coolant Temperature Sensor / Switch HVAC: Locations

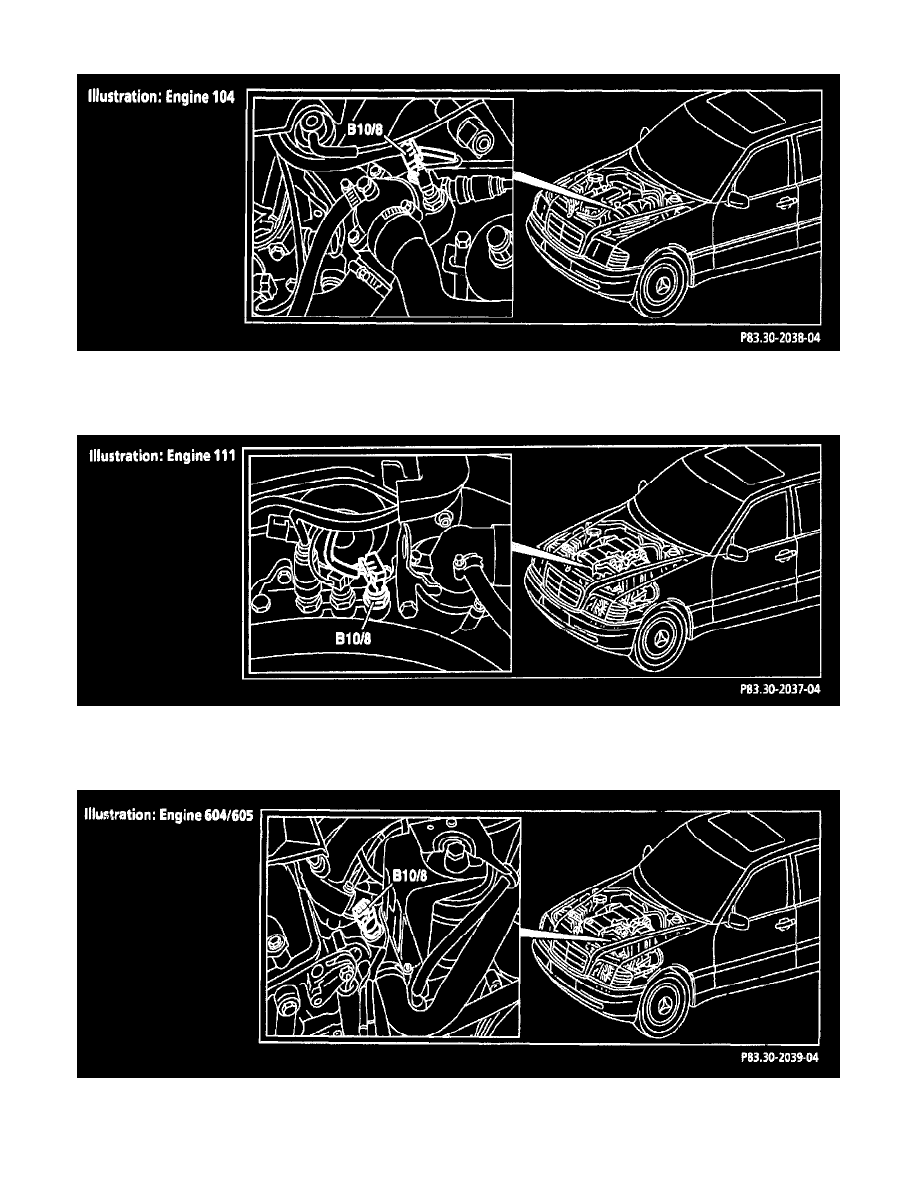

Engine 104
The A/C engine coolant temperature sensor (B10/8) is located on the thermostat housing.
Engine 111
The A/C engine coolant temperature sensor (B10/8) is located on the thermostat housing at the front of the cylinder head.
Illustration: Engine 604/605
The A/C engine coolant temperature sensor (B10/8) is located at the front left on the cylinder head in the vicinity of the fuel filter.
