SLK 230 (170.447) L4-2.3L SC (111.973) (2000)

Page 1
background image

Evaporator Housing: Locations

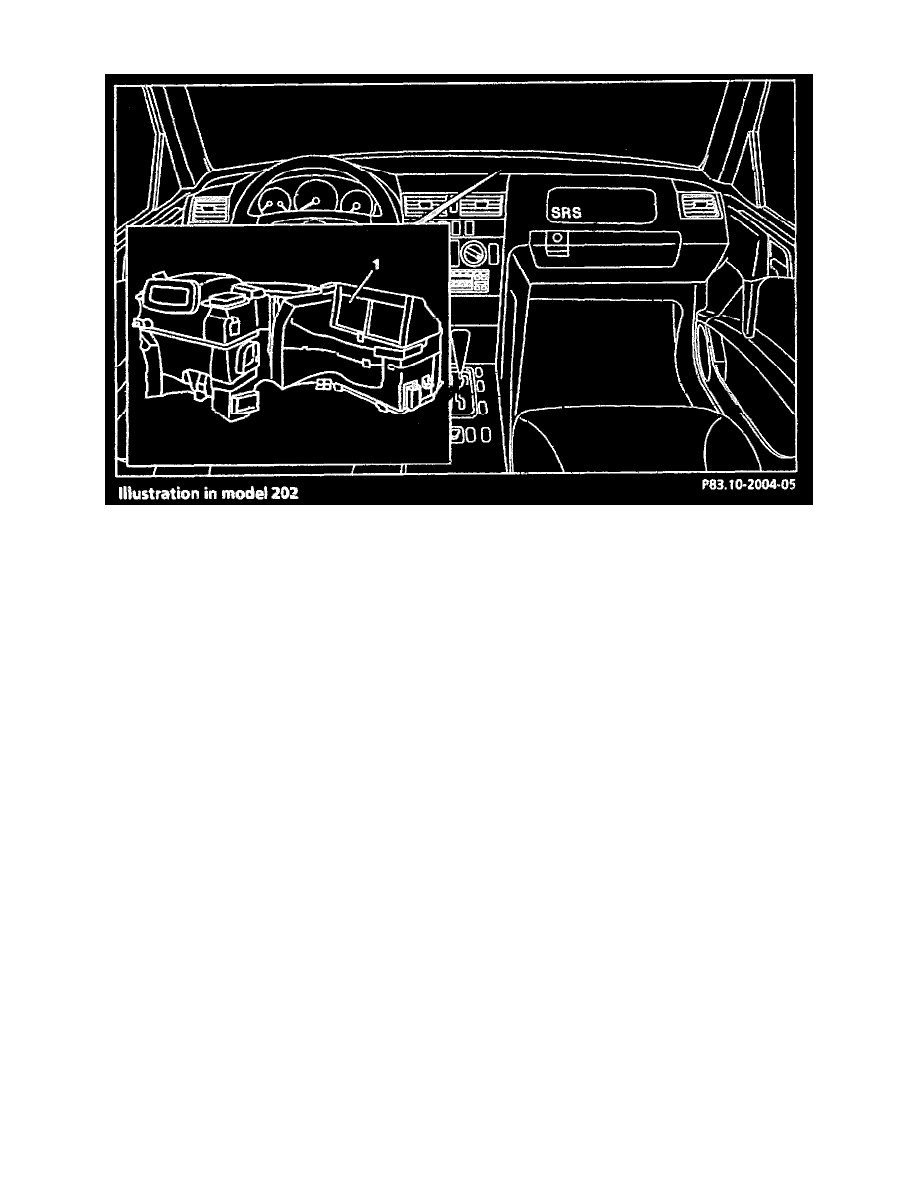

Illustrated In Model 202

The A/C housing (1) is located below the instrument panel.
