Secondary Air Injection Relay, Location|Page 2902 > < Diagnostic Trouble Code Descriptions

SLK 230 (170.447) L4-2.3L SC (111.973) (2000)

Page 1
background image

Air Injection Pump Relay: Description and Operation

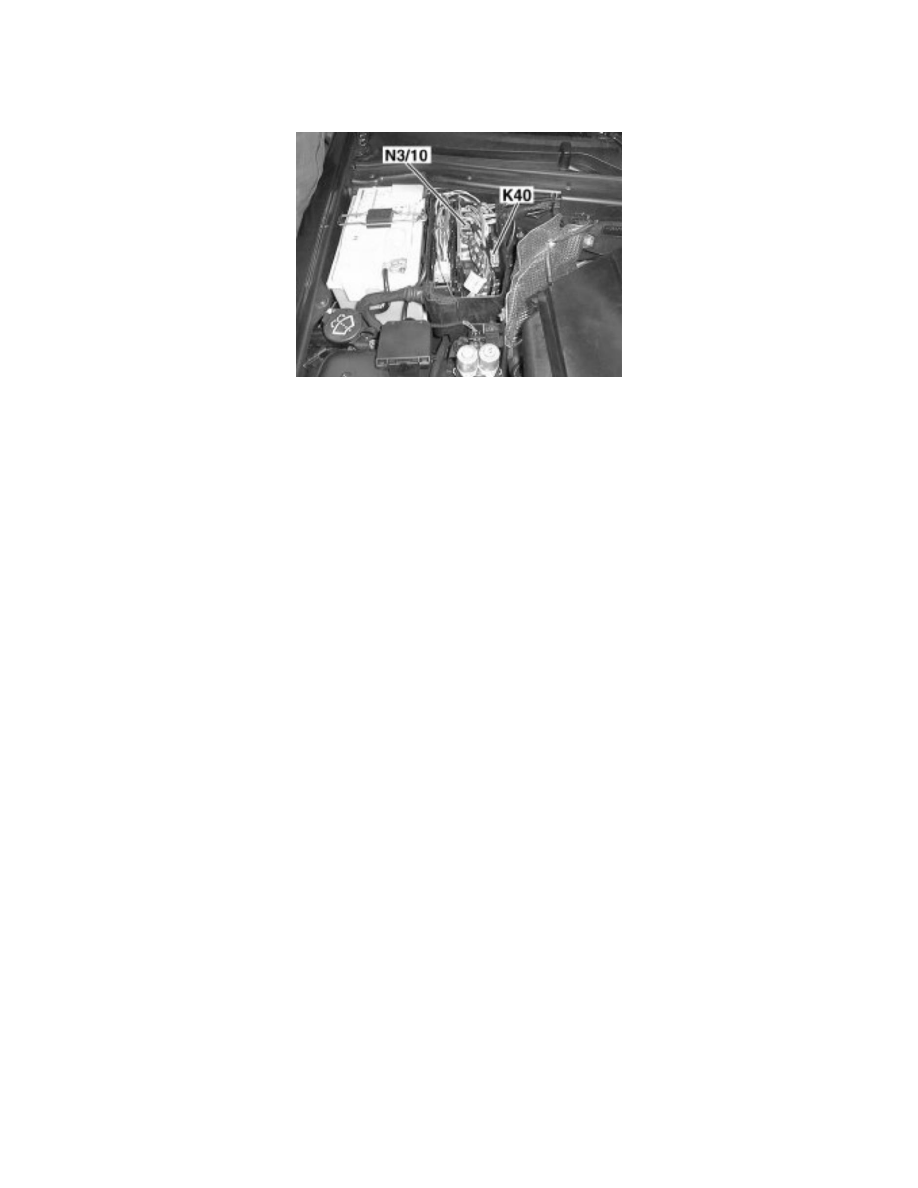

Secondary Air Injection Relay, Location

Secondary Air Injection Relay, Position

K40

Relay module with secondary air injection relay

N3/10

ME-SFI control module

Secondary Air Injection Relay, Location|Page 2902 > < Diagnostic Trouble Code Descriptions
