SLK 230 (170.447) L4-2.3L SC (111.973) (2000)

Page 1
background image

Evaporator Temperature Sensor / Switch: Locations

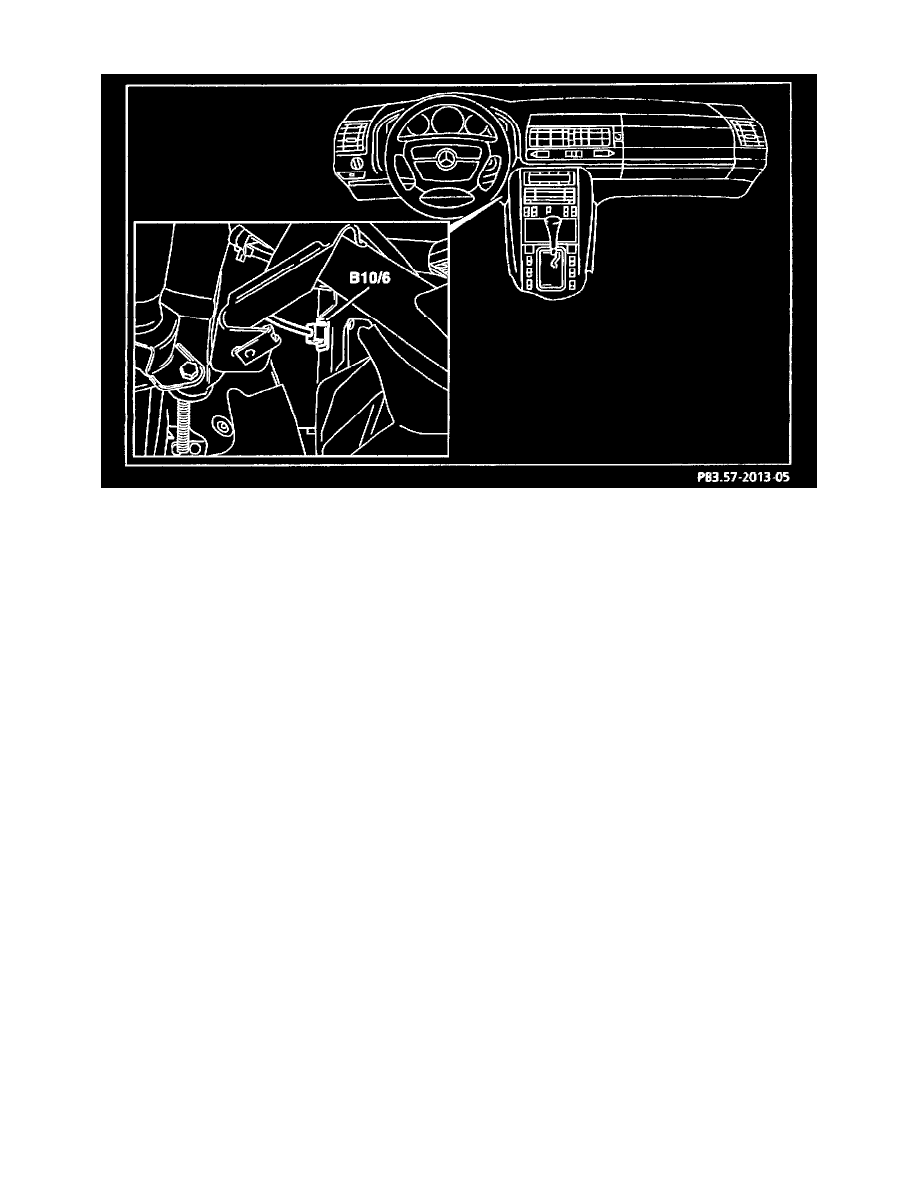

The evaporator temperature sensor (B10/6) is located in the air flow behind the evaporator in the A/C housing.
