SLK 230 (170.447) L4-2.3L SC (111.973) (2000)
/l4-2.3l_sc_(111.973)/Page-228001.png)
Mass Air Flow Sensor: Description and Operation
Hot Film Mass Air Flow Sensor, Location/Task/Design/Function

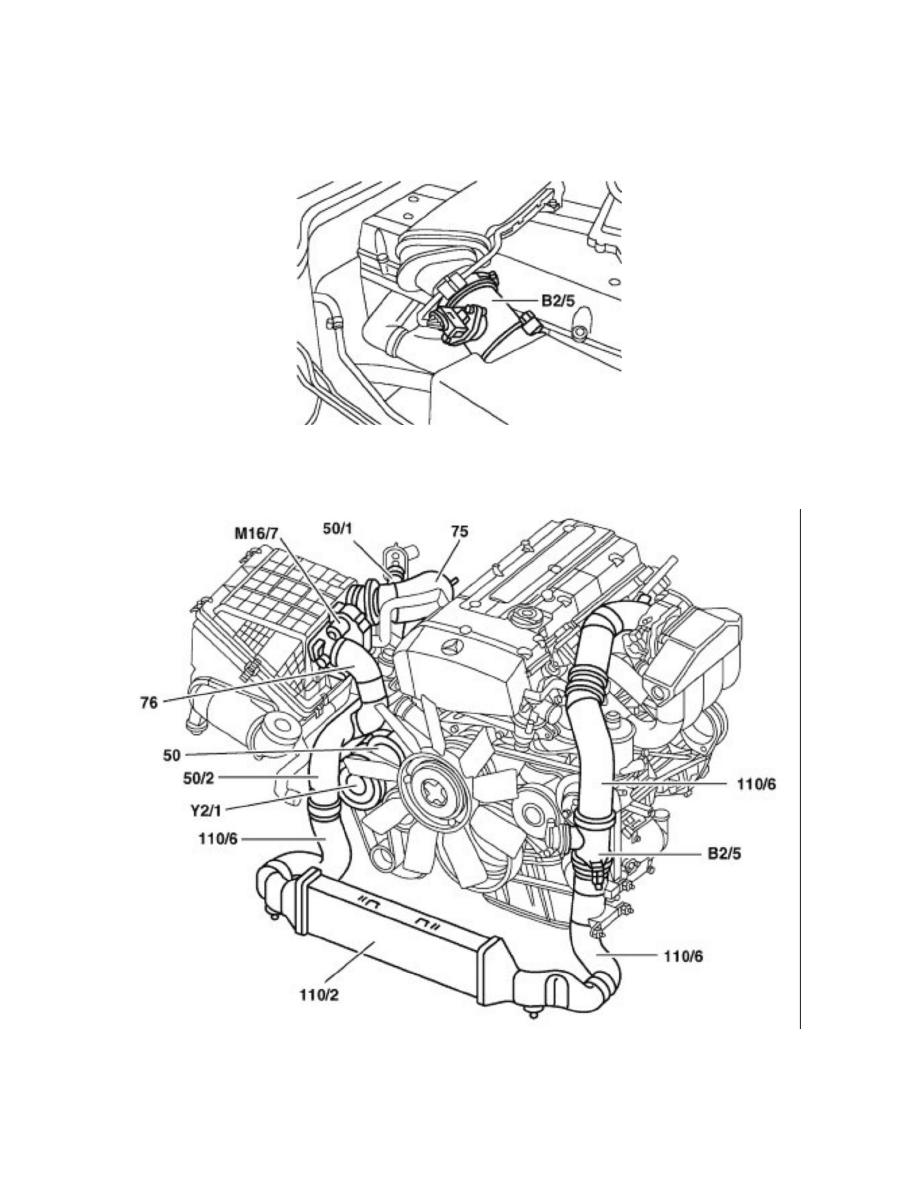

Hot Film Mass Air Flow Sensor, Location
Hot Film Mass Air Flow Sensor, Location
Engine 111 without supercharger
Between air cleaner and intake manifold (in air intake passage)
B2/5
Hot film MAF sensor
Engine 111.944/975 with supercharger
Between charge air cooler and intake manifold (in intake/charge line)
50
Supercharger
50/1
Intake connection
50/2
Pressure connection/compressor outlet
75
Suction pipe
