Convertible Top Latch Actuator|Locations|Page 8250 > < AR77.33-P-3400G Remove/Install Catch at Front of Vario Roof|Page 8246

SLK 230 (170.449) L4-2.3L SC (111.983) (2001)

Page 1
background image

Convertible Top Latch Actuator: Locations

Location

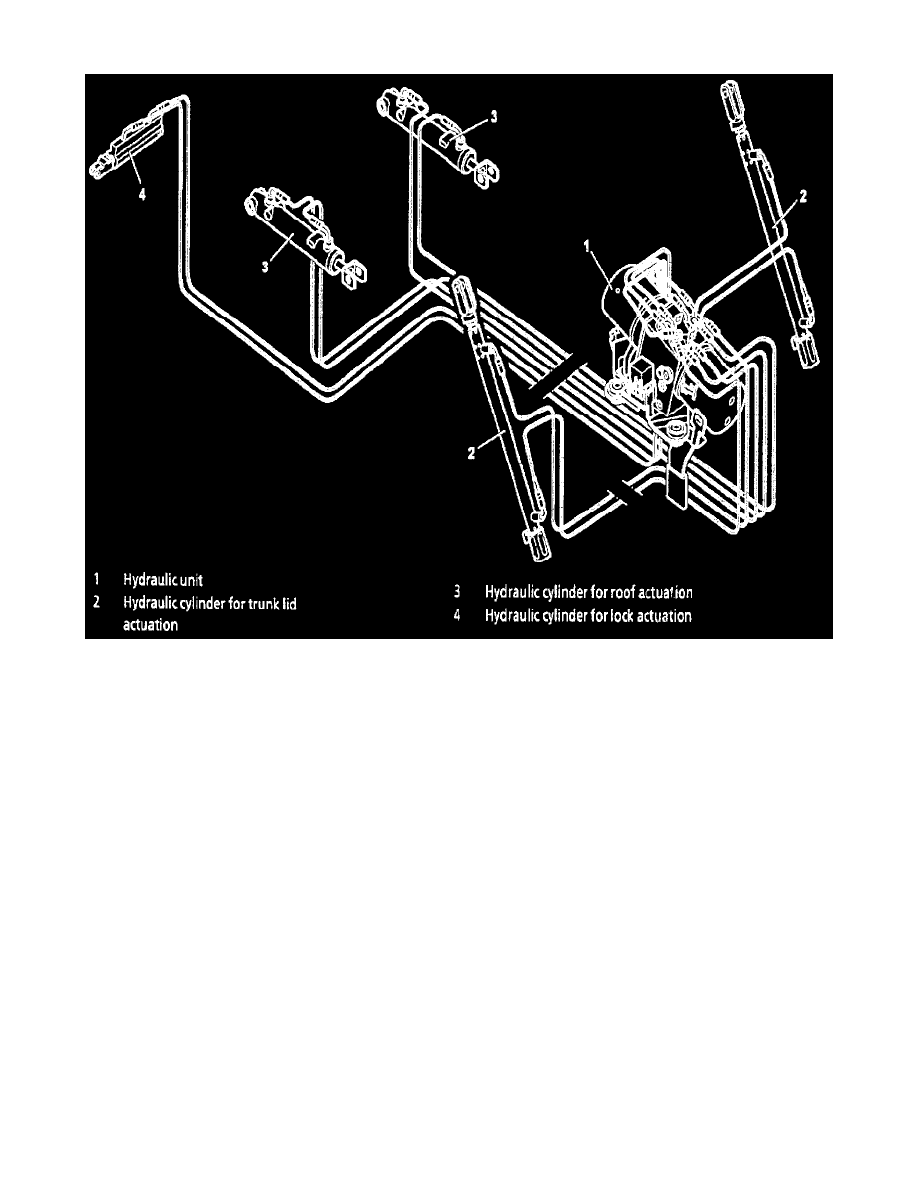

The hydraulic unit and the hydraulic cylinders for actuating the trunk lid are located in the trunk. The hydraulic cylinders for actuating the roof and
the hydraulic cylinder for actuating the lock are located in the Vario roof.

Convertible Top Latch Actuator|Locations|Page 8250 > < AR77.33-P-3400G Remove/Install Catch at Front of Vario Roof|Page 8246
