SLK 230 (170.449) L4-2.3L SC (111.983) (2001)
/l4-2.3l_sc_(111.983)/Page-2079001.png)

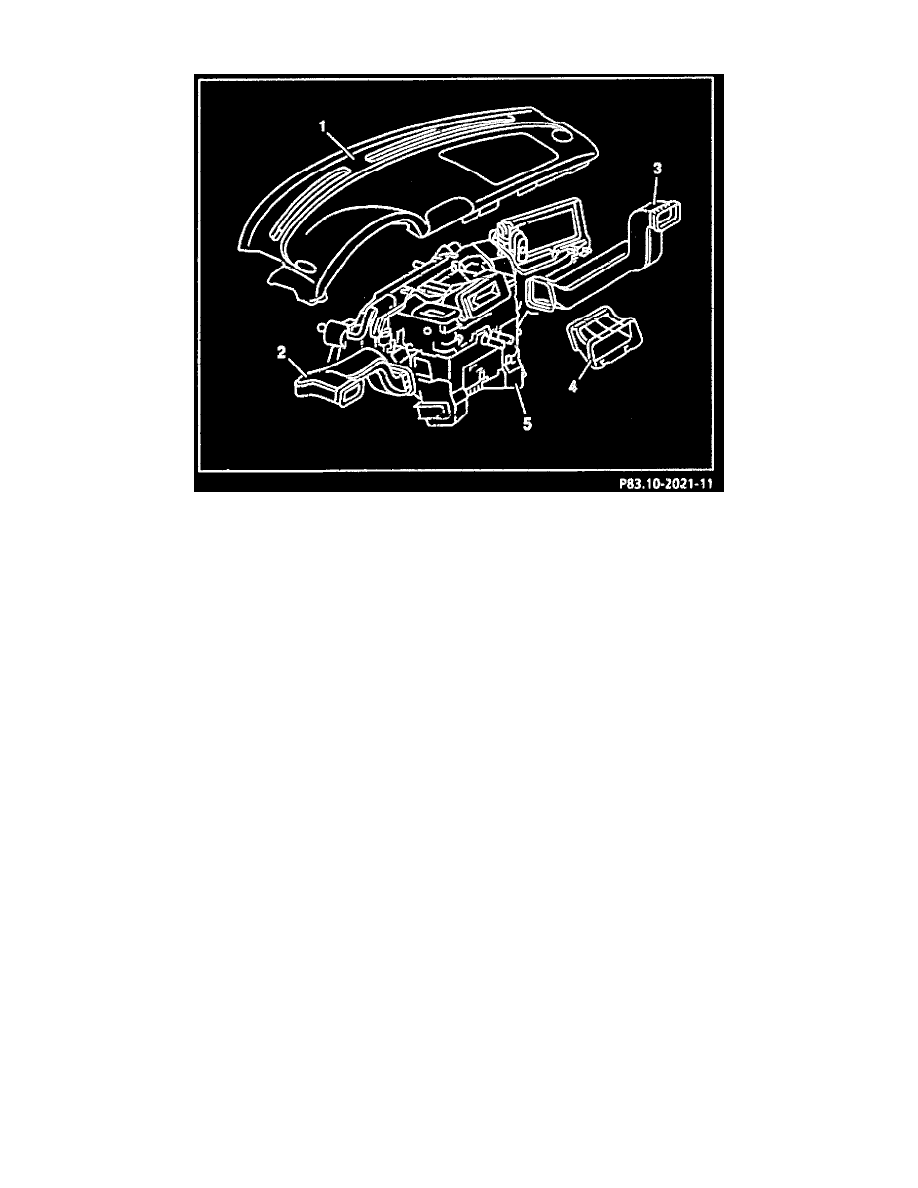

Air Duct: Locations
The air ducts for the windshield defroster nozzles and the side window defroster nozzles are integrated into the instrument panel (1).
The air ducts (2, 3) for the side nozzles are located on the left and right sides below the instrument panel.
The air duct (4) for the center nozzle is located in the center below the instrument panel.
The air ducts for the front footwell air outlets are integrated into the heater/A/C housing (5).
