Evaporator Core: Locations

Illustrated On Model 210

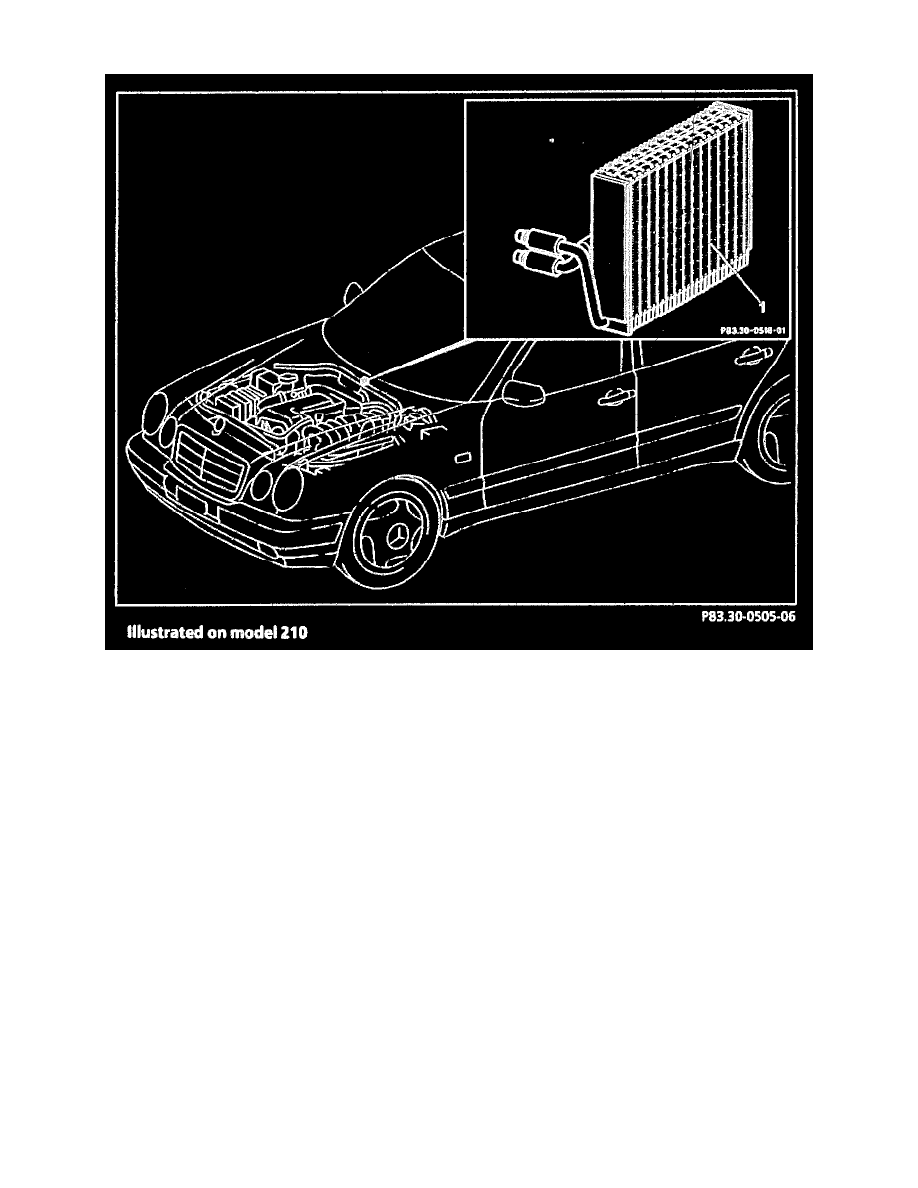

The evaporator (1) is located in the air conditioning housing behind the instrument panel. Illustrated: Behr version.
