SLK 230 (170.449) L4-2.3L SC (111.983) (2001)

Page 1
background image

Refrigerant Pressure Sensor / Switch: Locations

Component Identification

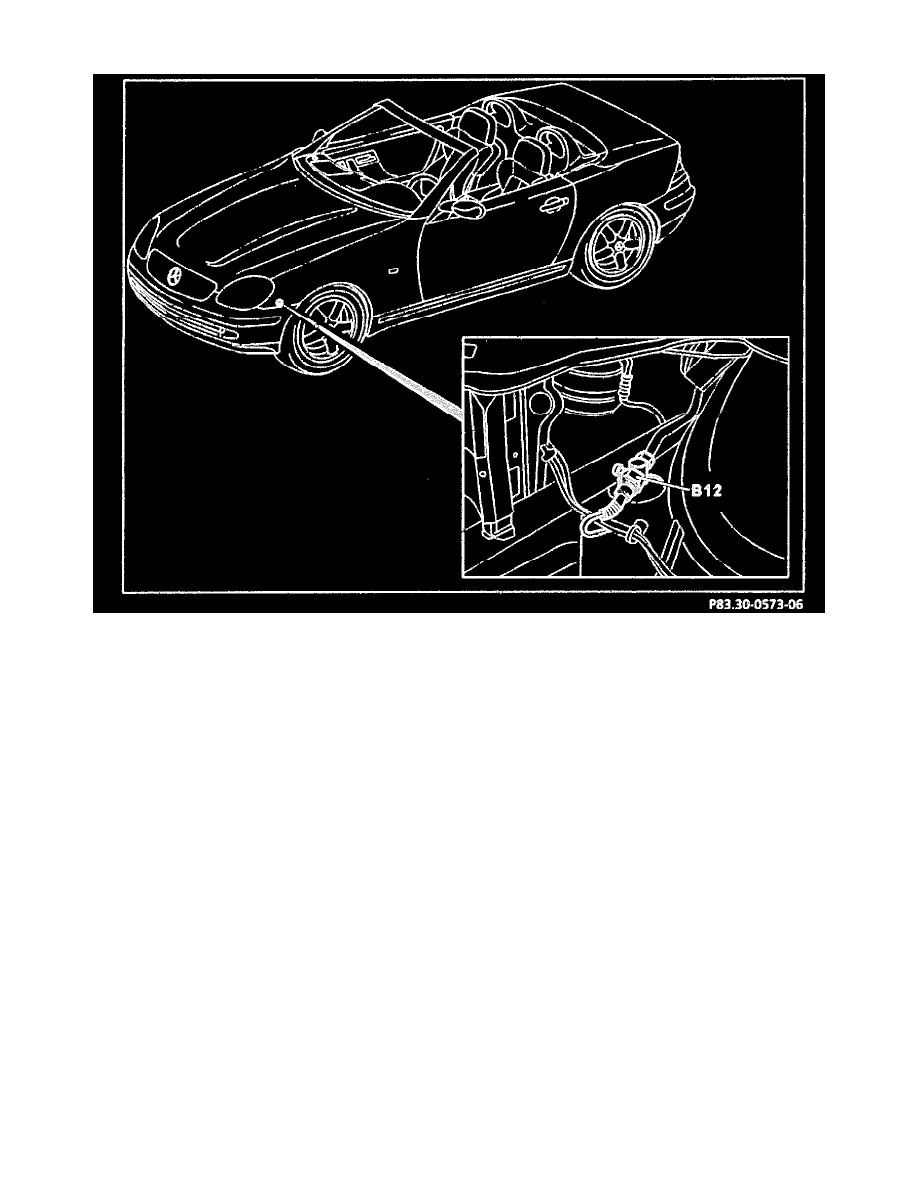

The refrigerant pressure sensor (B12) is located at the front left in the engine compartment.
