SLK 230 (170.449) L4-2.3L SC (111.983) (2001)
/l4-2.3l_sc_(111.983)/Page-2676001.png)

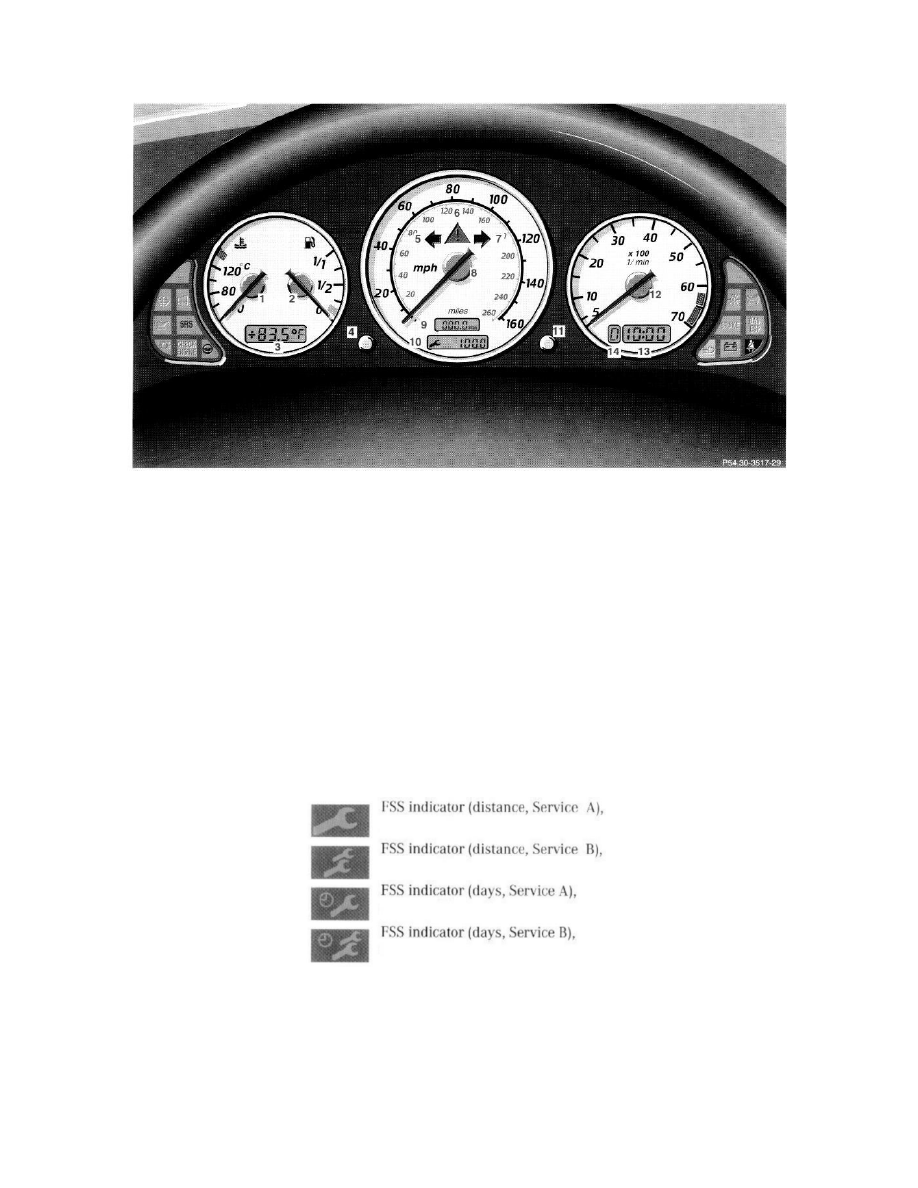

ASSYST/FSS (Service Reminder) Indicator: Locations
Instrument cluster
1
Coolant temperature gauge
2
Fuel gauge with reserve and fuel cap placement warning lamp
3
Outside temperature indicator
4
Push button for activating the instrument cluster, intensity of instrument lamps, for trip odometer, and for Flexible service system (FSS) indicator
5
Left turn signal indicator lamp
6
Electronic stability program (ESP) warning lamp, system is adjusting to road conditions
7
Right turn signal indicator lamp
8
Speedometer
9
Trip odometer
Service Symbols
10 Main odometer, Flexible service system (FSS) indicator: The symbols appear in the main odometer display field prior to the next suggested
service. Depending on operating conditions throughout the year, the next service is calculated and displayed in days or distance remaining.
11 Push button for setting clock
12 Tachometer
