SLK 230 (170.449) L4-2.3L SC (111.983) (2001)

Page 1
background image

Air Diverter Valve: Locations

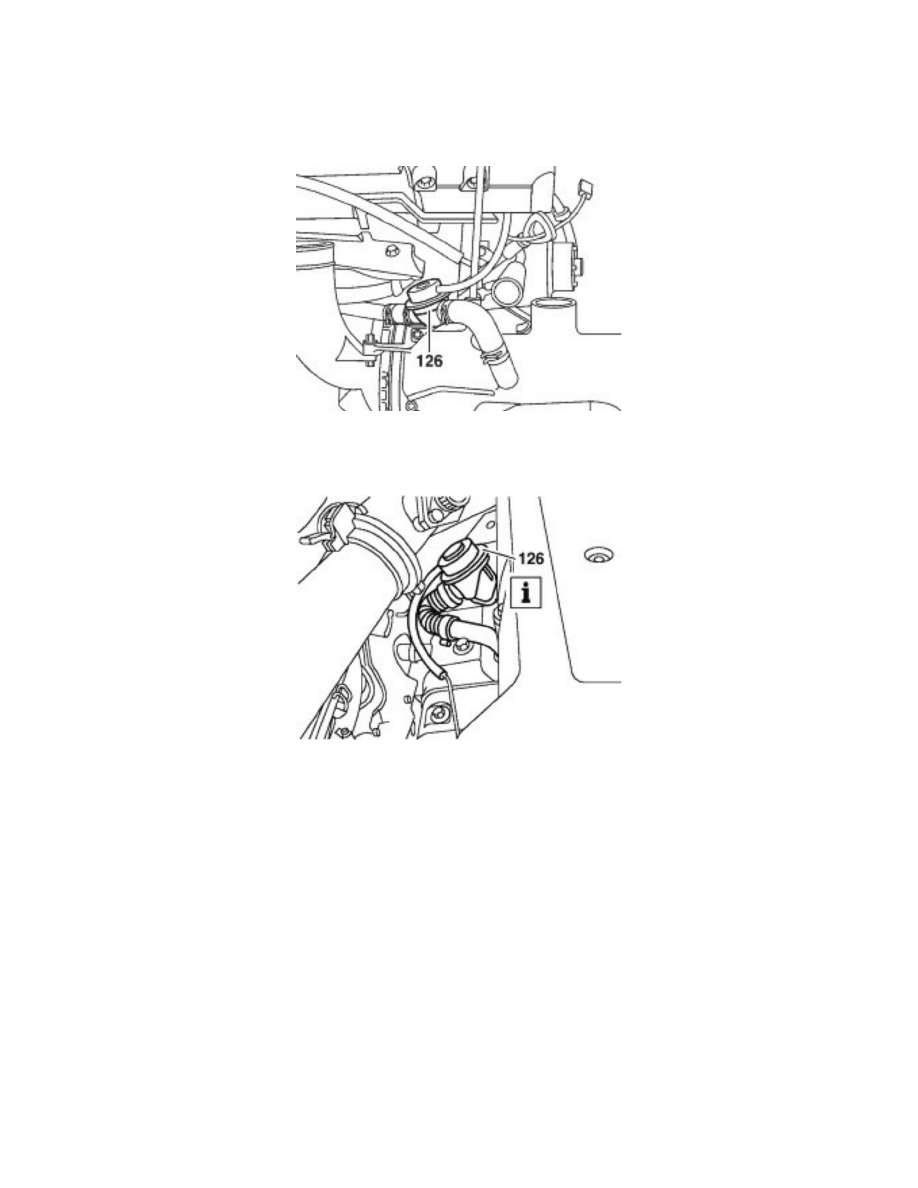

Air Shutoff Valve, Location

Air Shutoff Valve, Position



Engine 111 with supercharger
126

Air shutoff valve



Engine 111
126

Air shutoff valve
